Glider HA
Glider HA
Glider HA
Glider HA
Glider HA
Glider HA

Naish

Glider HA

$759.50 $1,519.00
Save 50%

Shipping calculated at checkout

SKU: 24F-SGH1400
Size:

Size
Quantity:
Pickup available at Javelin Logistics Usually ready in 24 hours

Glider HA

1400

Javelin Logistics

Pickup available, usually ready in 24 hours

5545 NE 148th Ave suite b
Portland OR 97230
United States

+15038020516
In stock
Details of Selected Size

Size: 1400

Article code: 516.40175.000.140

Aspect ratio: 9.45

Carve: 2

Experience level: IntermediateExpert

Front wing span cm: 115.0

Front wing span in: 45.3

Front wing stab: Glider HA 1400

Fuselage length cm: 64

Fuselage length in: 25 1/4"

Hardware: tbd/ 4 x 30mm M6/ 4 x T-nuts

Lift: 5

Projected surface area cm2: 1400

Projected surface area in2: 217.0

Rider weight: 55-7070-8585<

Speed: 2

Stabilizer: 2D stab 250

Use case: SUP DownwindPump Foiling

Weight kg: 2.14

Glider HA

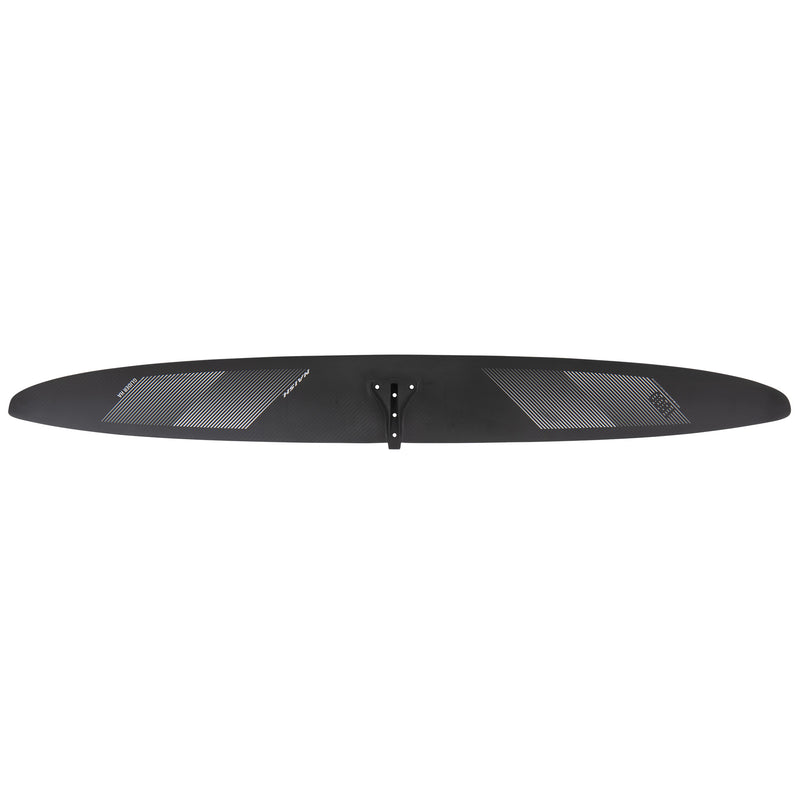

The Glider HA is our newly designed pump foil that specializes in dock starts and low-effort, light wind downwinding. The large wingspan and high aspect ratio foils provide high lift and low stall speed, making it possible to effortlessly pump and glide for long distances. In order to accommodate this larger wingspan, a new "Hammer Head" fuselage front wing connection has been designed to provide a very stable connection, instant response, and reduces any flex. The Dual expansion foam core construction with UD and 3K carbon layup provides ultimate stiffness at low weight. Note: The Glider HA Front Wing is only compatible with the Glider HA Fuselage.

Download Product Manual

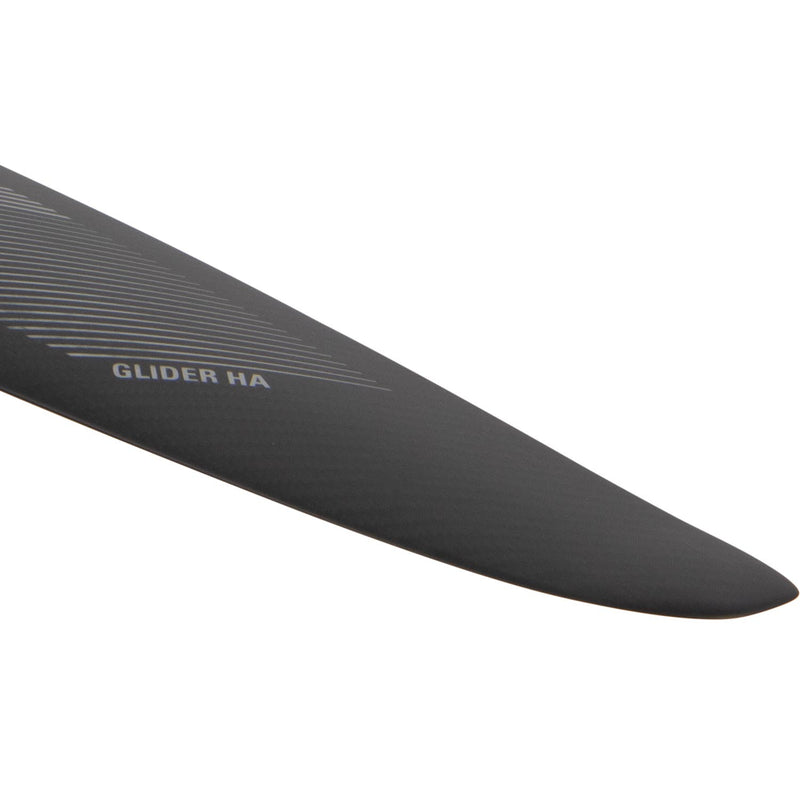

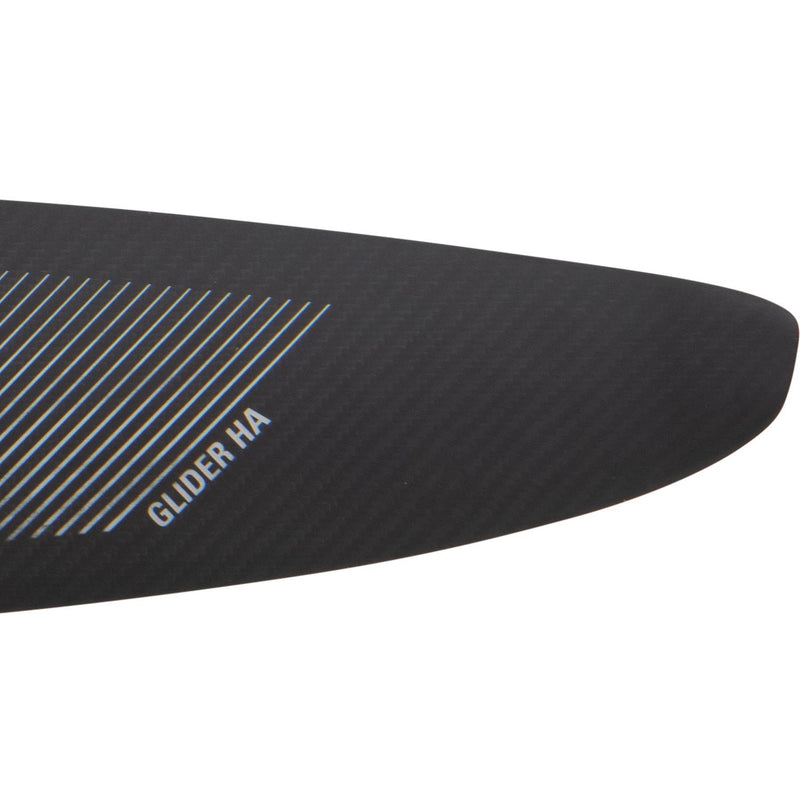

Large Wingspan Foil

Provides high lift at low speeds and maximized glide.

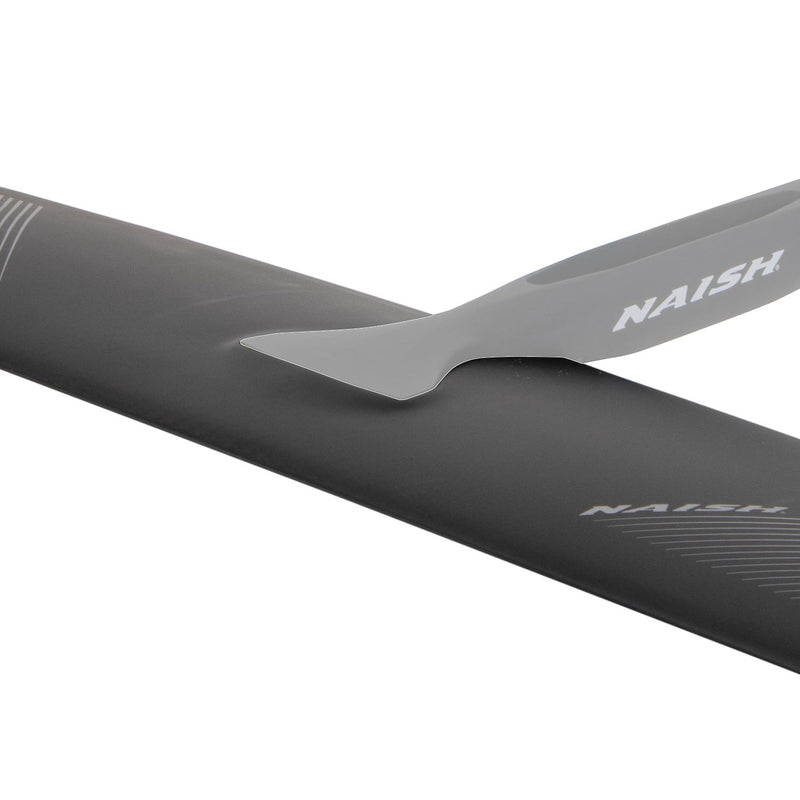

Hammer Head Joint Connection to Fuselage

Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.

Durable and lightweight construction

100% Prepreg 3K Carbon Outer Layer Satin Finish

Dual Expansion Core Construction

Molded lightweight layup utilizing UD and 3K carbon Laminate.

Specifications per Size

Select columns to hide or show:

Size Lift Carve Speed Aspect ratio Experience level Front wing span cm Front wing span in Front wing stab Fuselage length cm Fuselage length in Hardware Projected surface area cm2 Projected surface area in2 Rider weight Stabilizer Use case Weight kg
1400
9.45 Intermediate, Expert 115.0 45.3 Glider HA 1400 64 25 1/4" tbd/ 4 x 30mm M6/ 4 x T-nuts 1400 217.0 55-70, 70-85, 85< 2D stab 250 SUP Downwind, Pump Foiling 2.14
1800
9.4 Beginner, Intermediate 130.0 51.2 Glider HA 1800 64 25 1/4" tbd/ 4 x 30mm M6/ 4 x T-nuts 1800 279.0 70-85, 85< 2D stab 250 SUP Downwind, Pump Foiling 2.59
ad25lzwvxegpqazlpdaigenblockf2b451d4abjtq
ad25lzwvxegpqazlpdaigenblockf2b451d4abjtq
ad25lzwvxegpqazlpdaigenblockf2b451d4abjtq
ad25lzwvxegpqazlpdaigenblockf2b451d4abjtq

Glider HA

Large Wingspan Foil
Provides high lift at low speeds and maximized glide.

Hammer Head Joint Connection to Fuselage
Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.

100% Prepreg 3K Carbon Outer Layer Satin Finish
Durable and lightweight construction.

Dual Expansion Core Construction
Molded lightweight layup utilizing UD and 3K carbon Laminate.


Rider Reviews

I like the Glider HA when the waves or bumps are super gutless, or I just want to go for a cruise downwind without top speed on my mind.

Casper Steinfath
Casper Steinfath
