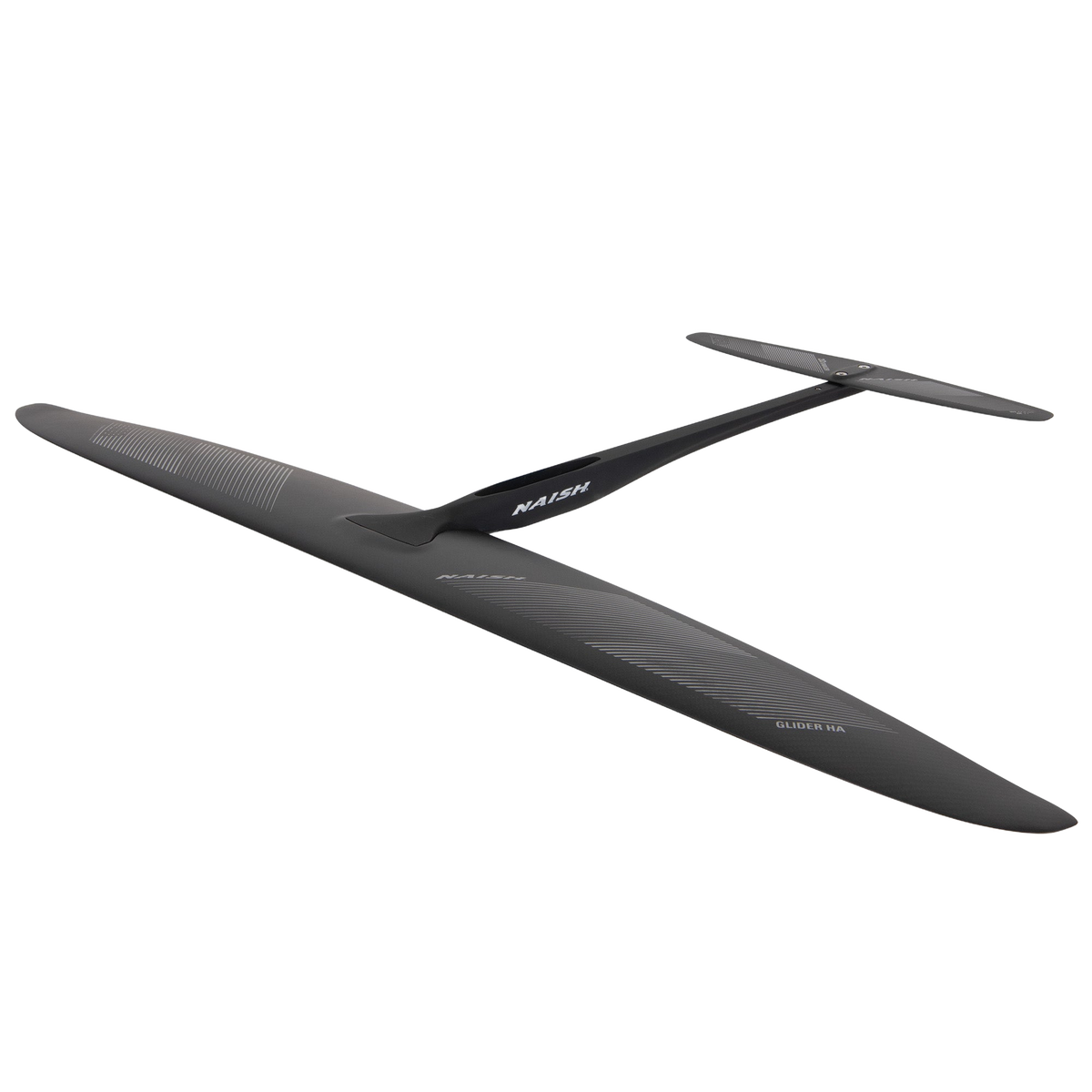

Glider HA

Name: 1800 Glider HA
SKU: 24F-SGH1800
Price: 809.5 USD

Available sizes 1400 / 1800

Size

1400 1800

SKU: 24F-SGH1400

From $759.50 ~~$1,519.00~~

Shipping calculated at checkout

Quantity

Technical details

Feature technology

01 / 04

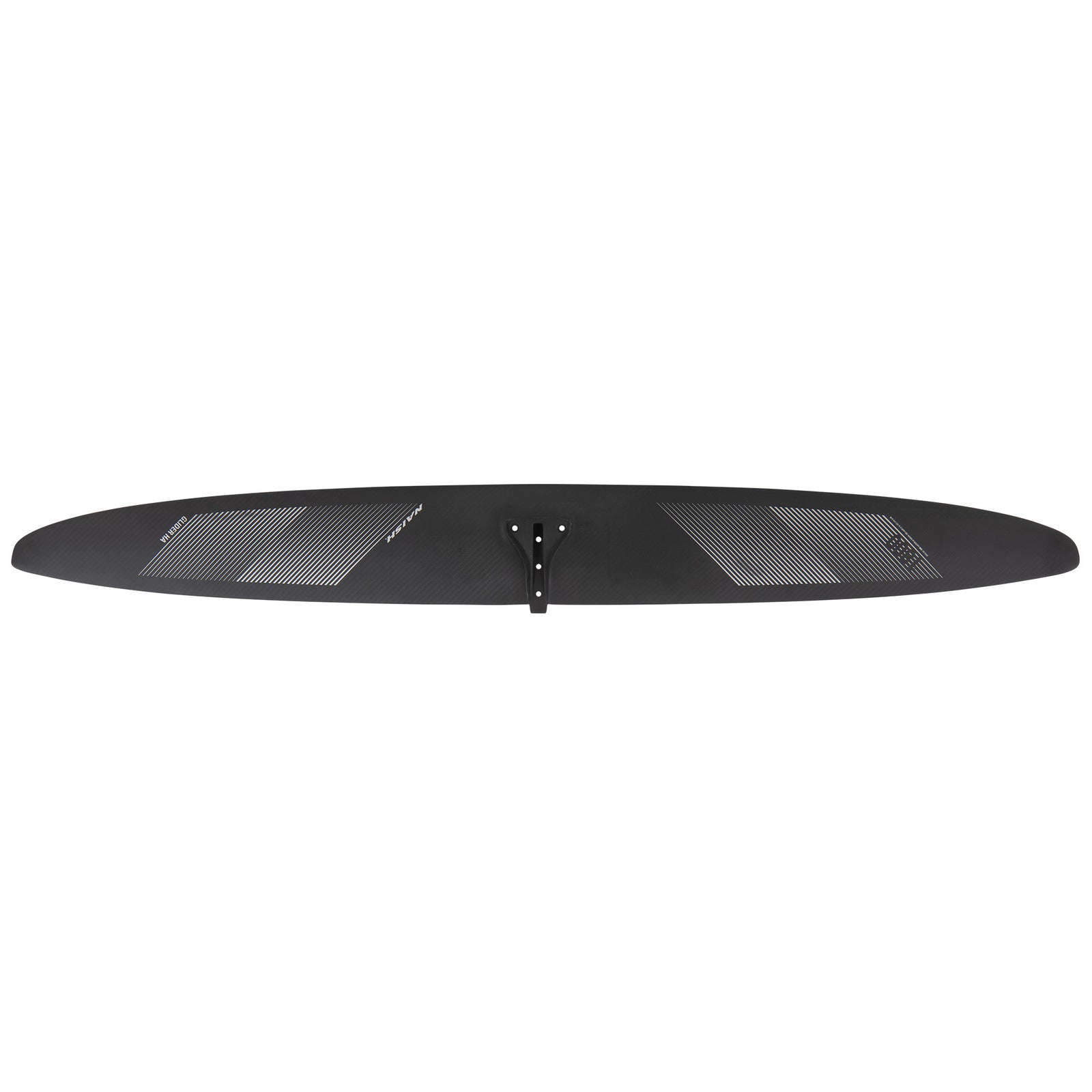

Feature 1

Large Wingspan Foil

Provides high lift at low speeds and maximized glide.

Feature 2

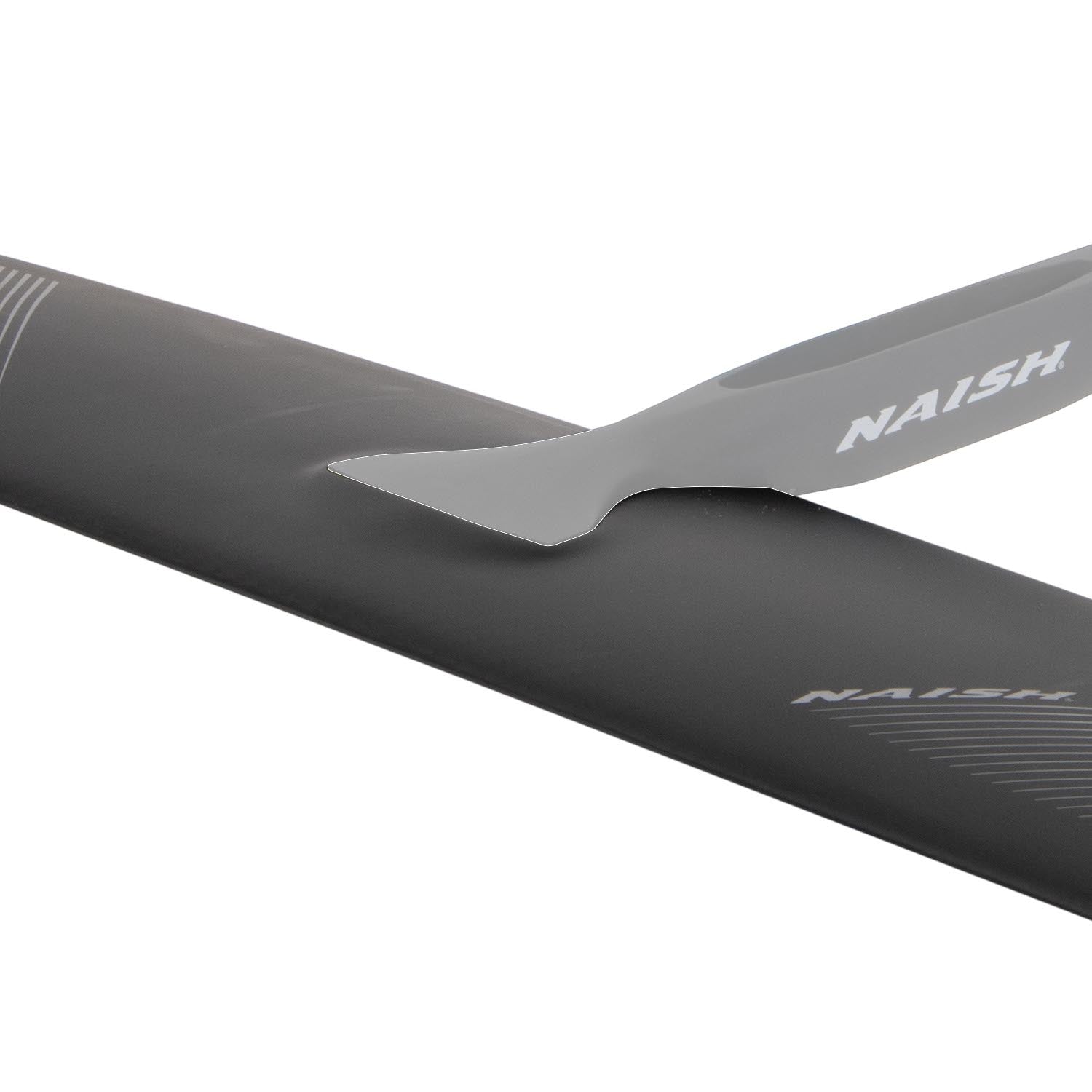

Hammer Head Joint Connection to Fuselage

Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.

Feature 3

Durable and lightweight construction

100% Prepreg 3K Carbon Outer Layer Satin Finish

Feature 4

Dual Expansion Core Construction

Molded lightweight layup utilizing UD and 3K carbon Laminate.

The concept

01 Product information The Glider HA is our newly designed pump foil that specializes in dock starts and low-effort, light wind downwinding. The large wingspan and high aspect ratio foils provide high lift and low stall speed, making it possible to effortlessly pump and glide for long distances. In order to accommodate this larger wingspan, a new "Hammer Head" fuselage front wing connection has been designed to provide a very stable connection, instant response, and reduces any flex. The Dual expansion foam core construction with UD and 3K carbon layup provides ultimate stiffness at low weight. Note: The Glider HA Front Wing is only compatible with the Glider HA Fuselage. Download Product Manual Read more...

The Glider HA is our newly designed pump foil that specializes in dock starts and low-effort, light wind downwinding. The large wingspan and high aspect ratio foils provide high lift and low stall speed, making it possible to effortlessly pump and glide for long distances. In order to accommodate this larger wingspan, a new "Hammer Head" fuselage front wing connection has been designed to provide a very stable connection, instant response, and reduces any flex. The Dual expansion foam core construction with UD and 3K carbon layup provides ultimate stiffness at low weight. Note: The Glider HA Front Wing is only compatible with the Glider HA Fuselage.

Download Product Manual

02 Technical details Large Wingspan FoilProvides high lift at low speeds and maximized glide.Hammer Head Joint Connection to Fuselage Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan. 100% Prepreg 3K Carbon Outer Layer Satin FinishDurable and lightweight construction.Dual Expansion Core Construction Molded lightweight layup utilizing UD and 3K carbon Laminate. Read more...

Large Wingspan Foil
Provides high lift at low speeds and maximized glide.

Hammer Head Joint Connection to Fuselage
Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.

100% Prepreg 3K Carbon Outer Layer Satin Finish
Durable and lightweight construction.

Dual Expansion Core Construction
Molded lightweight layup utilizing UD and 3K carbon Laminate.

01 Gallery 04

Glider HA

Specifications

Specs per size

Compare sizes and technical specifications. Click a column header to hide it, or restore hidden columns below the table.

Size	Lift	Carve	Speed	Aspect ratio	Experience level	Front wing span cm	Front wing span in	Front wing stab	Fuselage length cm	Fuselage length in	Hardware	Projected surface area cm2	Projected surface area in2	Rider weight	Stabilizer	Use case	Weight kg
1400				9.45	Intermediate, Expert	115.0	45.3	Glider HA 1400	64	25 1/4"	tbd/ 4 x 30mm M6/ 4 x T-nuts	1400	217.0	55-70, 70-85, 85<	2D stab 250	SUP Downwind, Pump Foiling	2.14
1800				9.4	Beginner, Intermediate	130.0	51.2	Glider HA 1800	64	25 1/4"	tbd/ 4 x 30mm M6/ 4 x T-nuts	1800	279.0	70-85, 85<	2D stab 250	SUP Downwind, Pump Foiling	2.59

“I like the Glider HA when the waves or bumps are super gutless, or I just want to go for a cruise downwind without top speed on my mind.”
