Naish
Excalibur Semi-Complete
Size
Excalibur Semi-Complete
Black / 544
Javelin Logistics
5545 NE 148th Ave suite b
Portland OR 97230
United States
Size: 544
Article code: 516.60171.000.544
Aspect ratio: 10.2
Front wing span cm: 74.5
Front wing span in: 29"
Fuselage length cm: 64
Fuselage length in: 25"
Projected surface area cm2: 544
Stabilizer: E-series 135
Weight kg: 0.55
Choose options
Size
Size: 544
Article code: 516.60171.000.544
Aspect ratio: 10.2
Front wing span cm: 74.5
Front wing span in: 29"
Fuselage length cm: 64
Fuselage length in: 25"
Projected surface area cm2: 544
Stabilizer: E-series 135
Weight kg: 0.55
Size
Size: 544
Article code: 516.60171.000.544
Aspect ratio: 10.2
Front wing span cm: 74.5
Front wing span in: 29"
Fuselage length cm: 64
Fuselage length in: 25"
Projected surface area cm2: 544
Stabilizer: E-series 135
Weight kg: 0.55

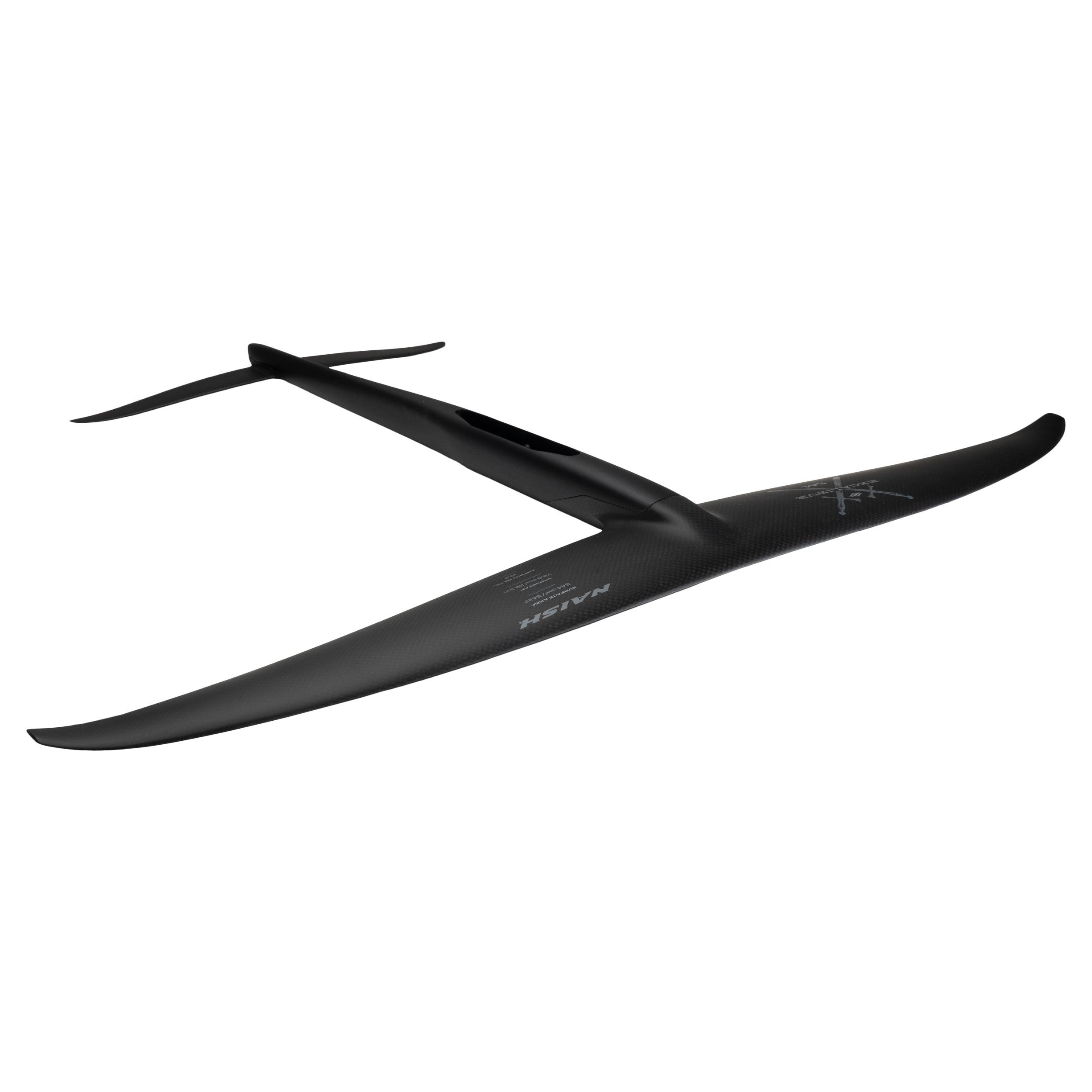

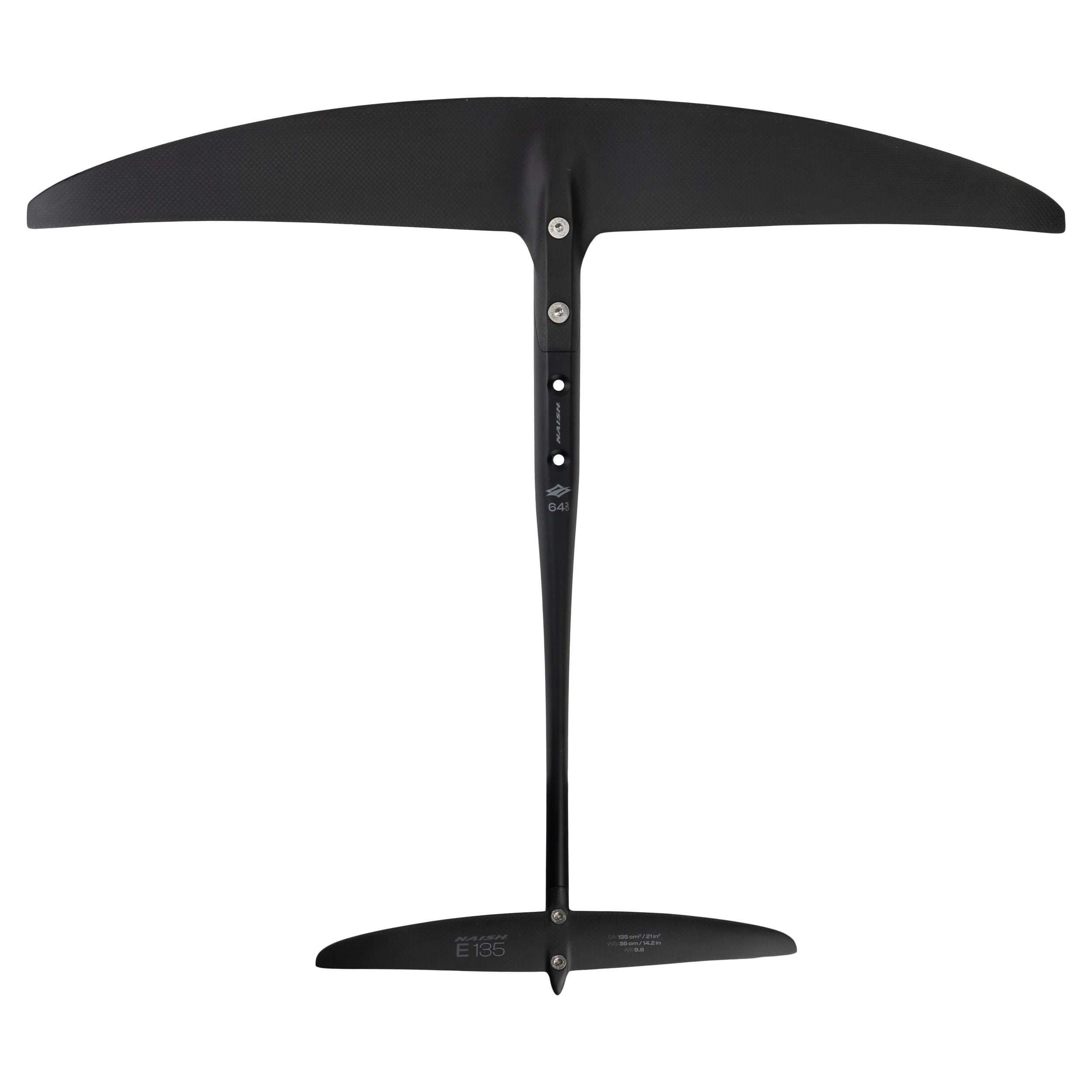

Excalibur Semi-Complete

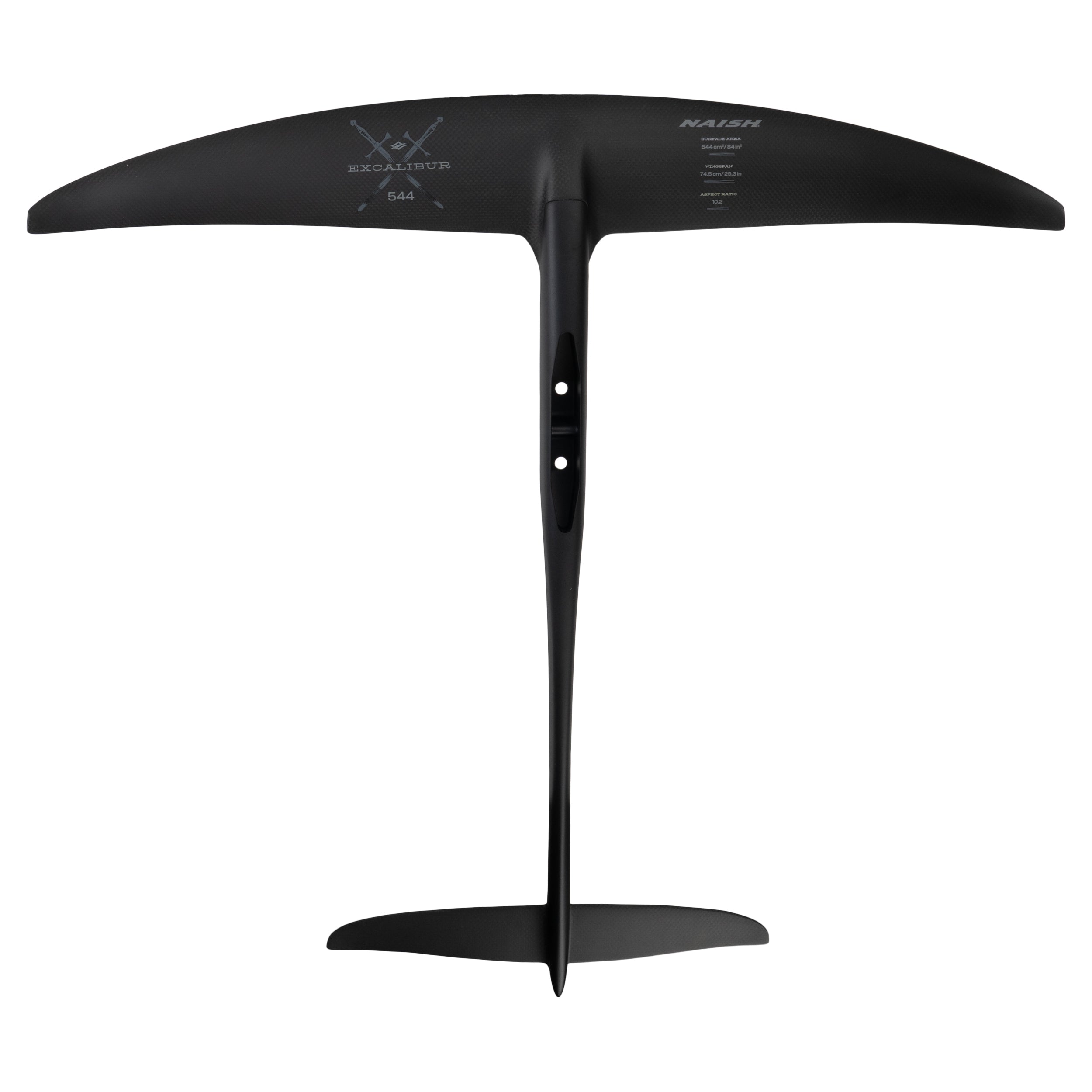

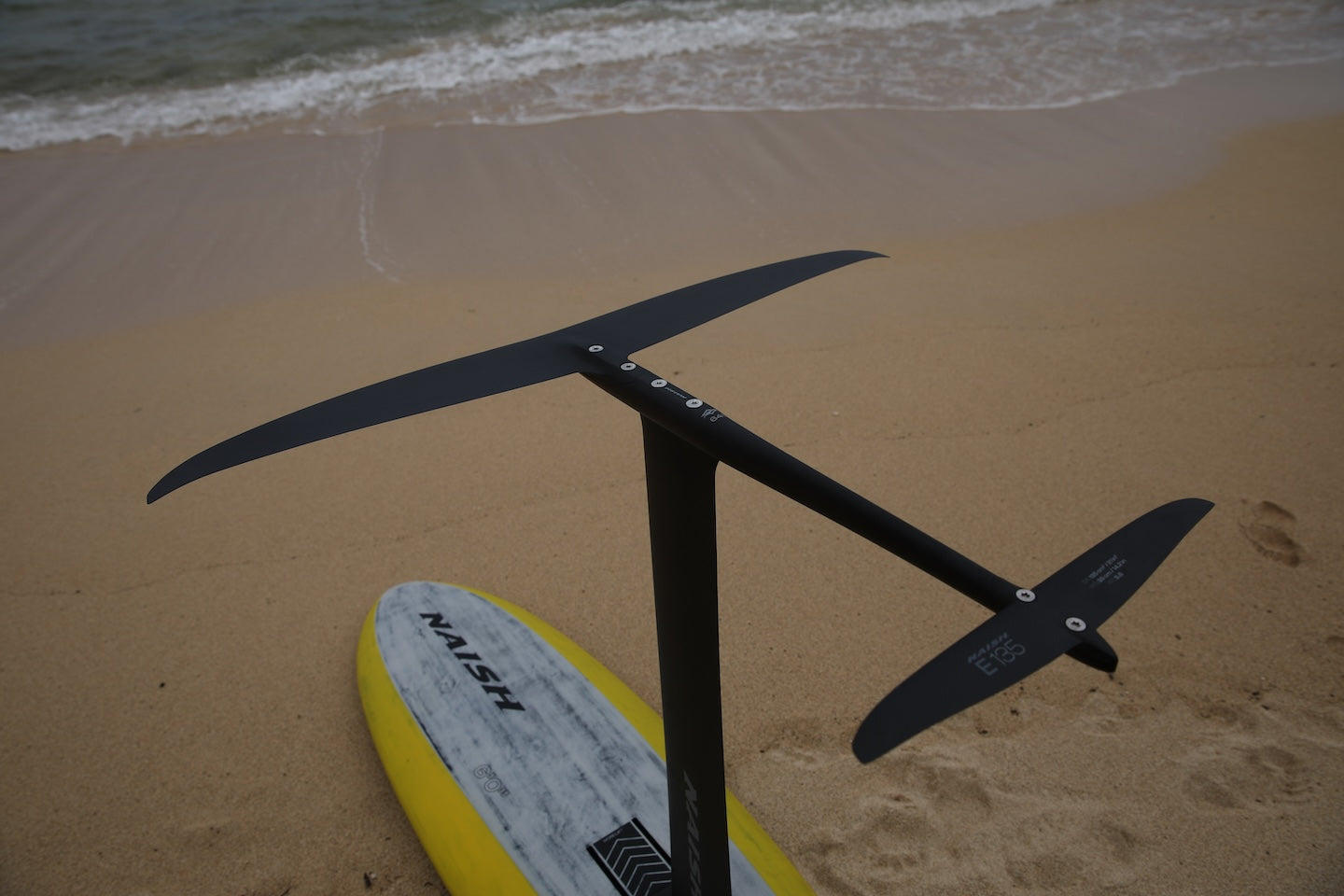

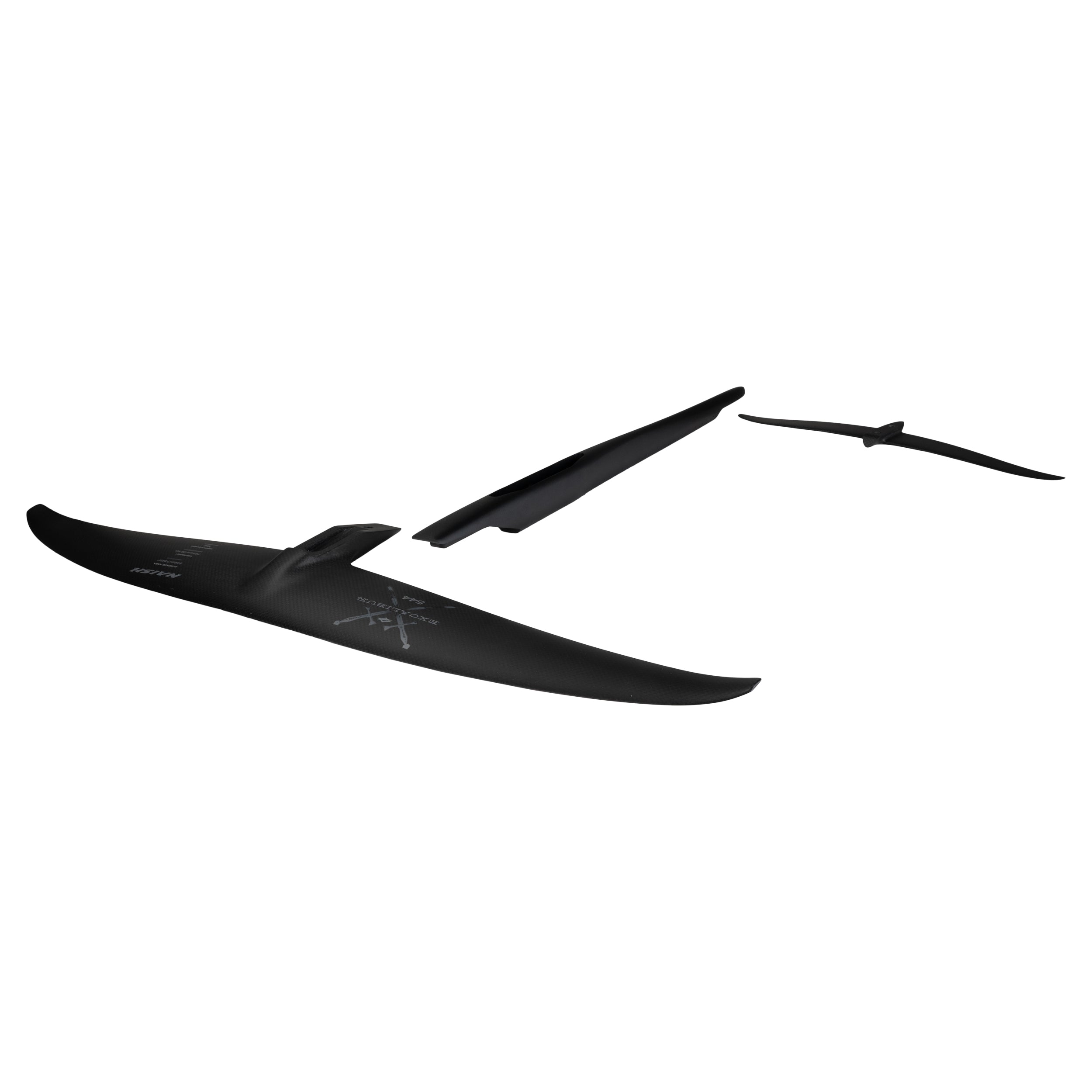

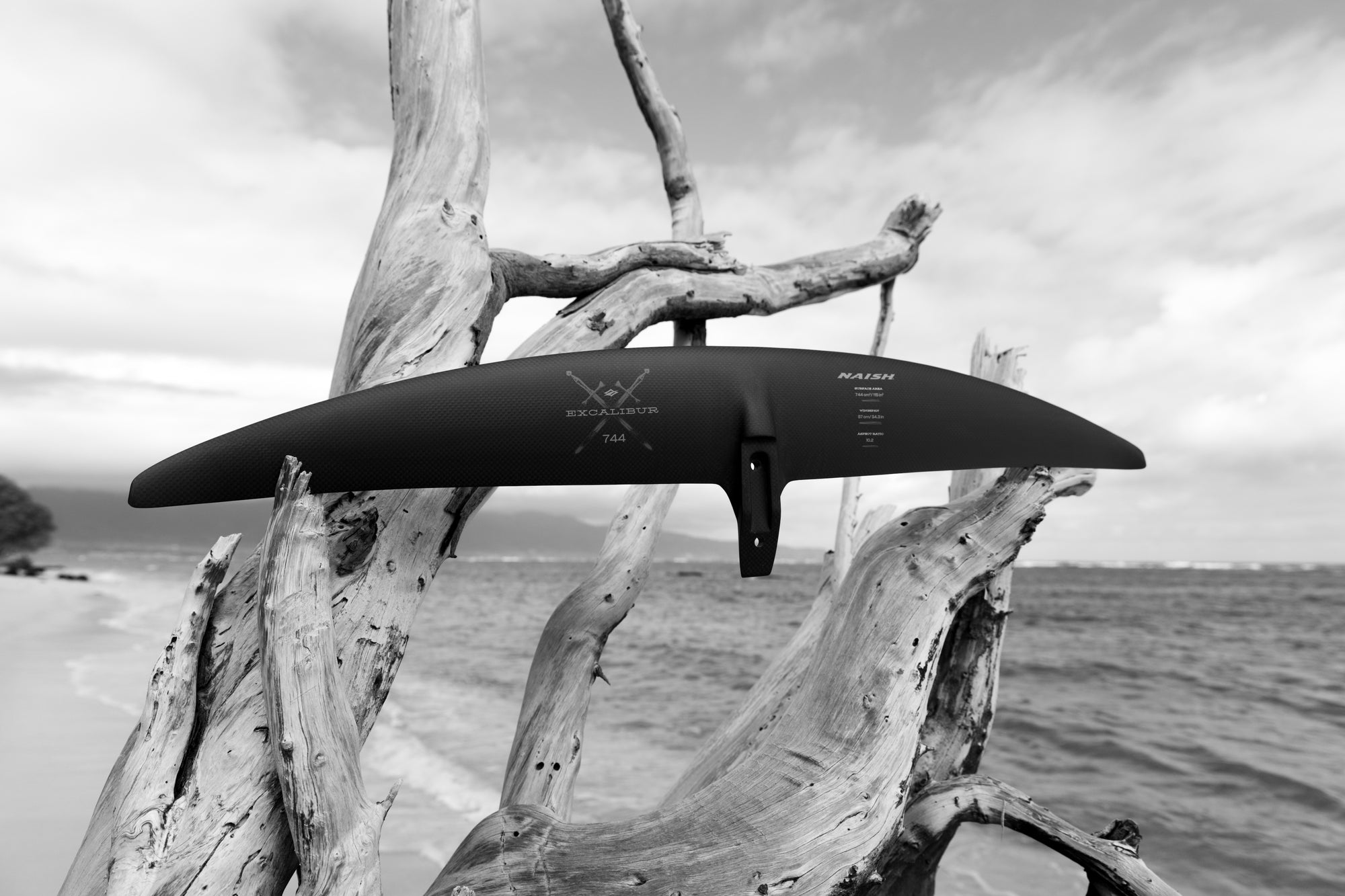

Capable of gliding effortlessly in all conditions, the Excalibur is Naish’s new high aspect. Designed as the successor to the Jet HA, the Excalibur features a high-aspect outline at 10.2 AR, a high-camber foil section, and a high modulus carbon construction. These features boost glide, lower stall speed, and improve feedback, making sizing down more attainable. The Excalibur also features a strong dihedral (upward) sweep in the tips to increase ventilation resistance and improve maneuverability. All of these features contribute to a foil which excels in disciplines that demand a balance of glide and maneuverability.
To maximize speed and glide, pair the Excalibur with an E-Series stabilizer. However, if you would like a surfier, more maneuverable feel, the S-Series stabilizer is a better choice.

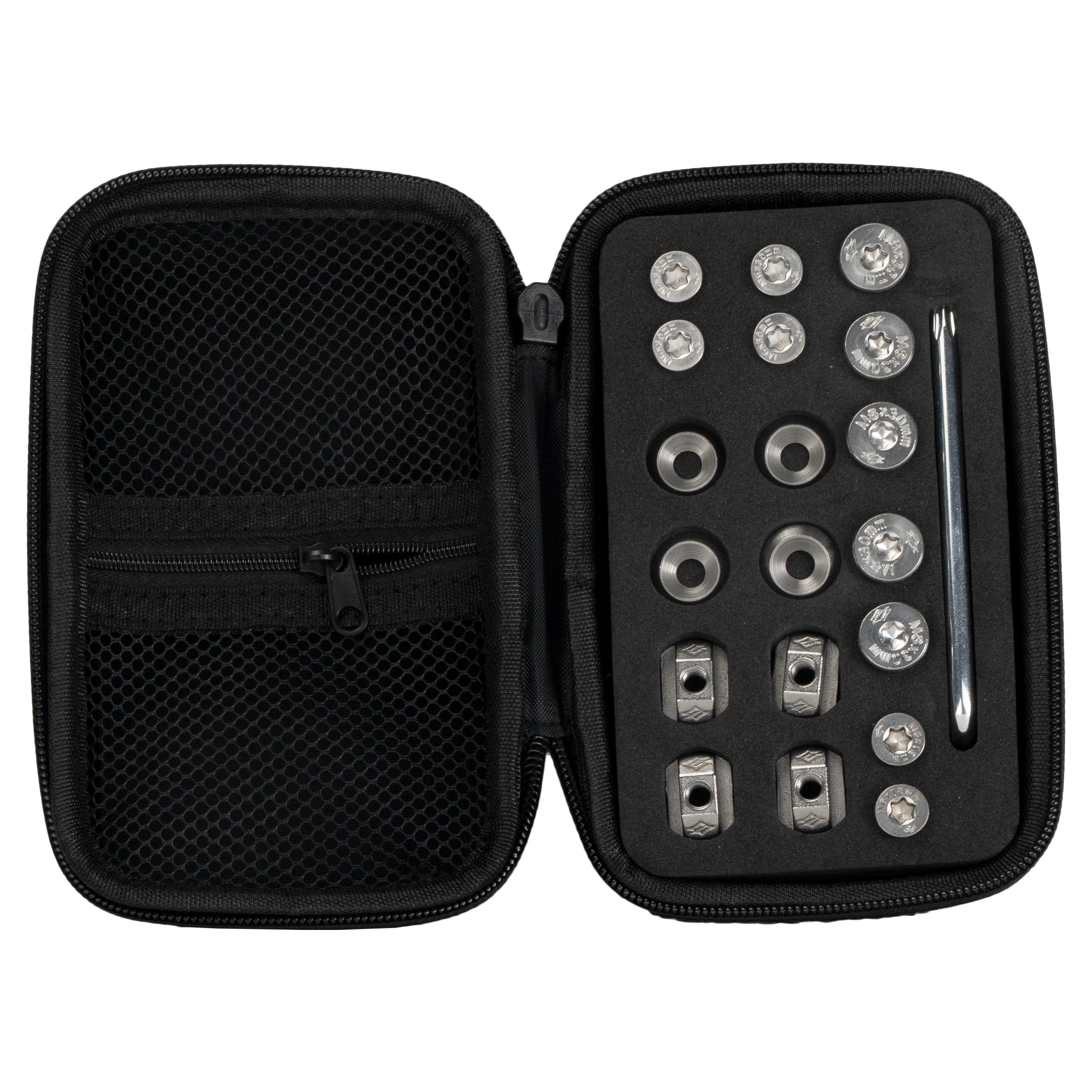

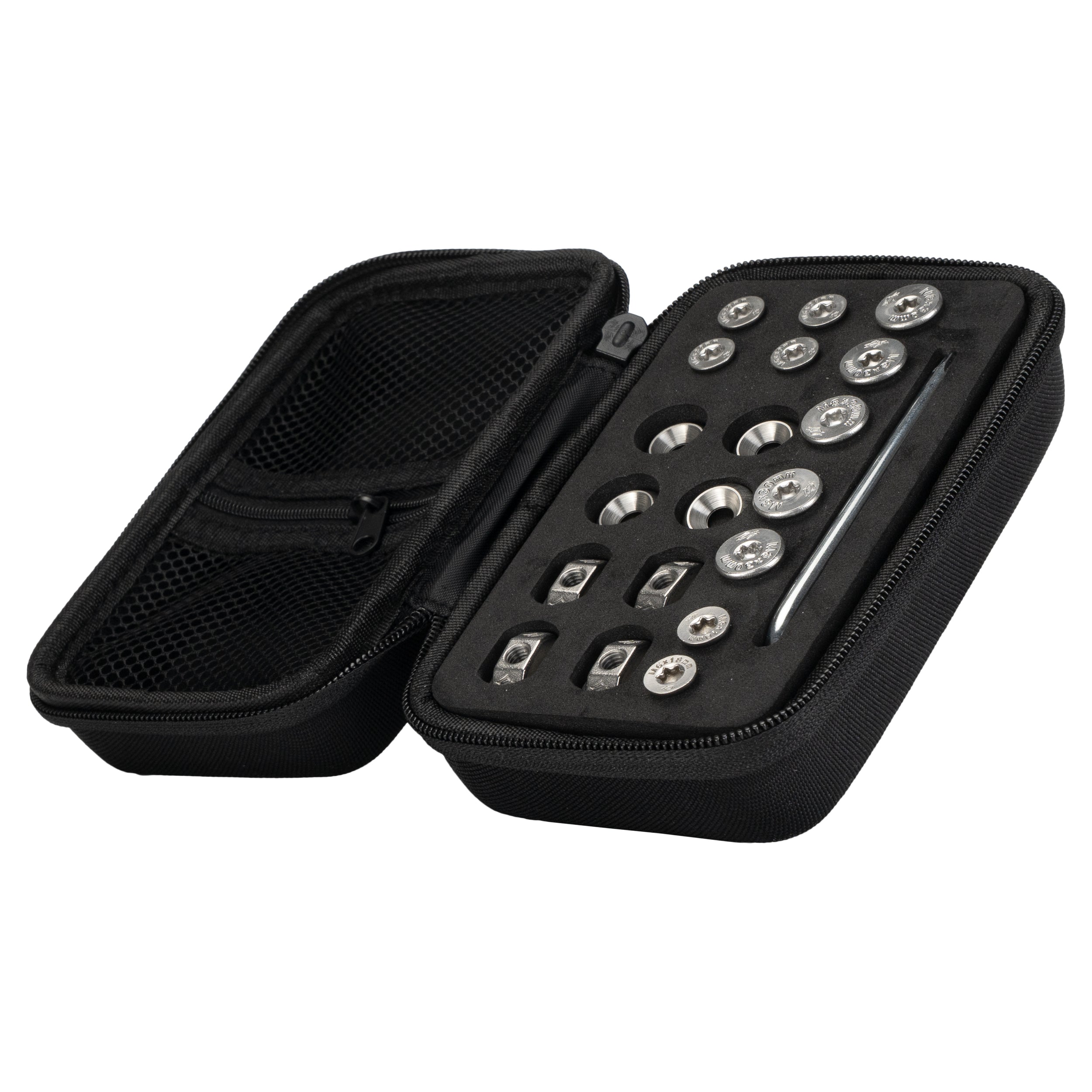

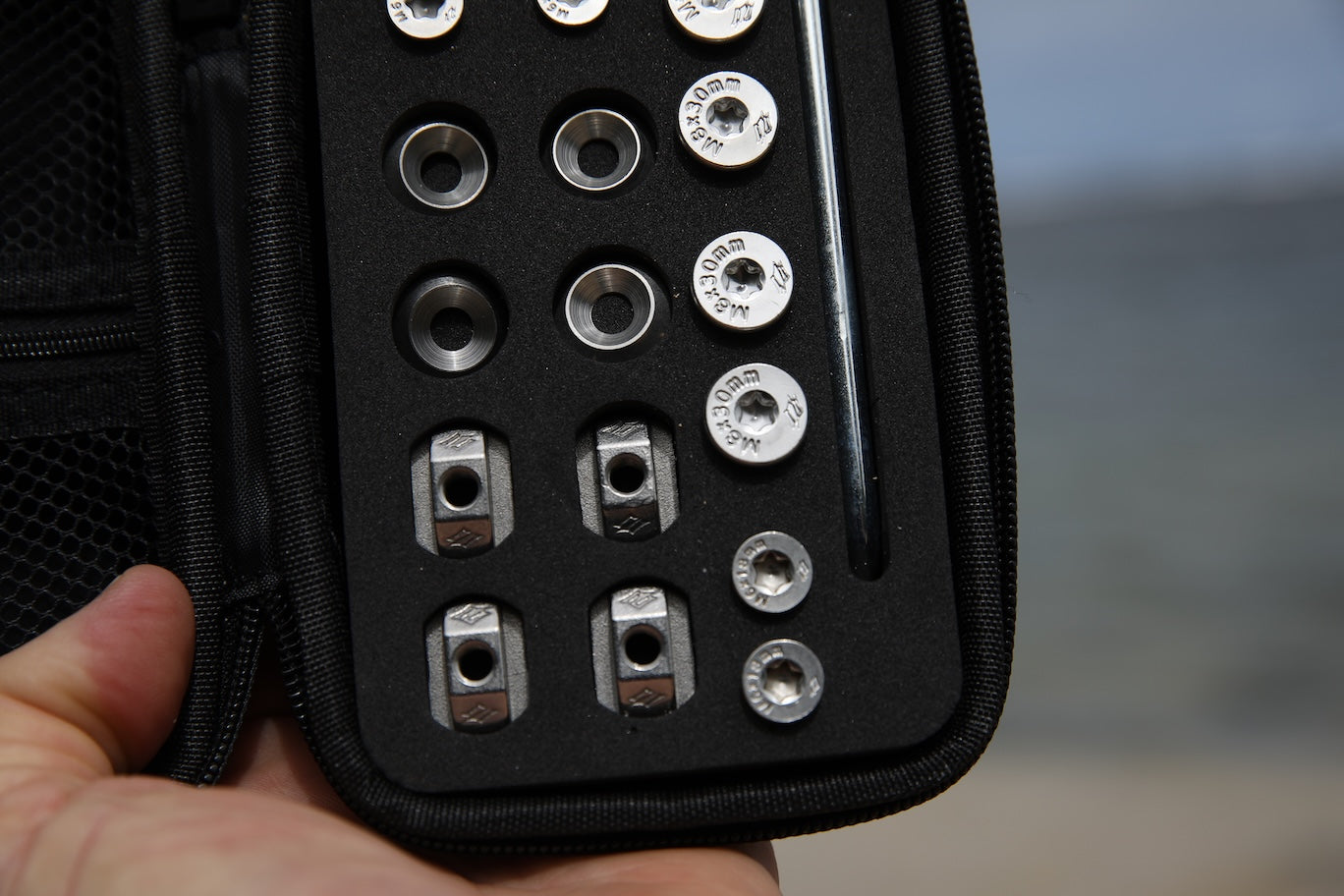

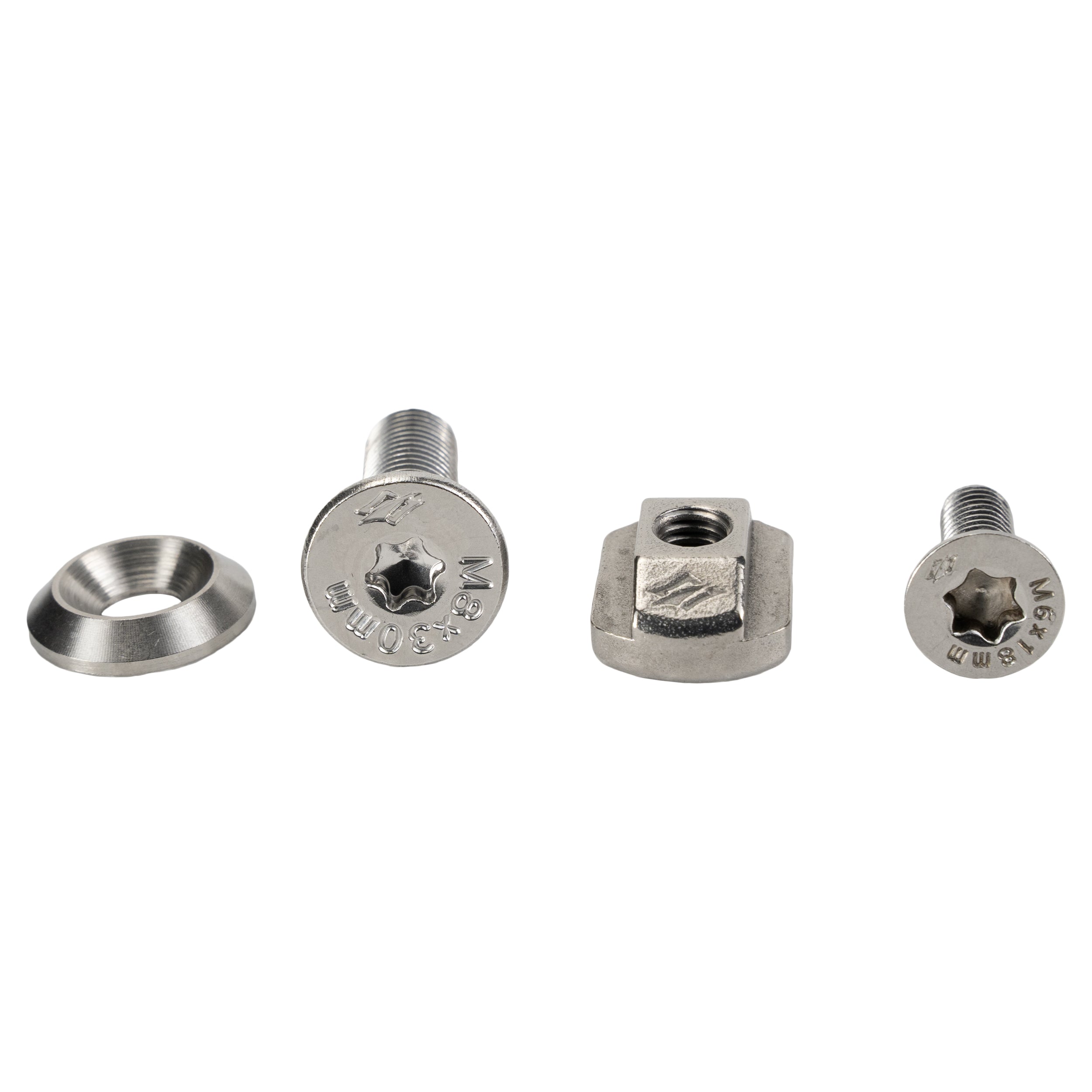

Utilizing our new Alpha connection system, the Excalibur receives a 30% increase in connection stiffness over our previous Legacy system. Featuring a larger cross sectional area, two or three M8 bolt connection depending on size, and a sleeker profile, the Alpha connection system offers a more direct feel than ever.
Specifications per Size
Select columns to hide or show:
| Size | Aspect ratio | Front wing span cm | Front wing span in | Fuselage length cm | Fuselage length in | Projected surface area cm2 | Stabilizer | Weight kg |
|---|---|---|---|---|---|---|---|---|
| 544 | 10.2 | 74.5 | 29" | 64 | 25" | 544 | E-series 135 | 0.55 |
| 744 | 10.2 | 87.0 | 34" | 64 | 25" | 744 | E-series 135 | 0.75 |
| 944 | 10.2 | 98.2 | 39" | 64 | 25" | 944 | E-series 155 | 0.9 |
| 1144 | 10.2 | 108.0 | 43" | 64 | 25" | 1144 | E-series 175 | 1.24 |
| 1344 | 10.2 | 117.0 | 46" | 64 | 25" | 1344 | E-series 175 | 1.35 |
