Naish

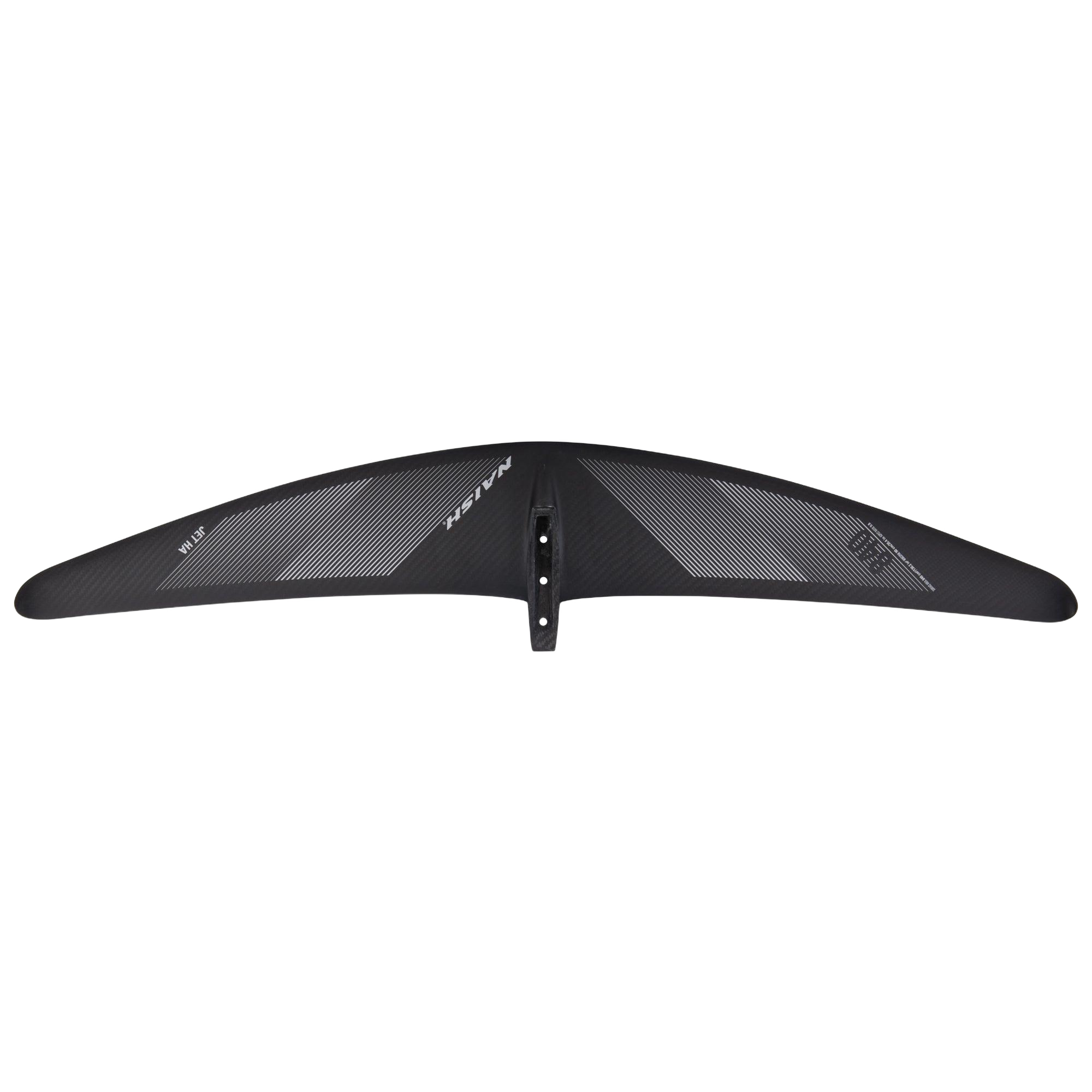

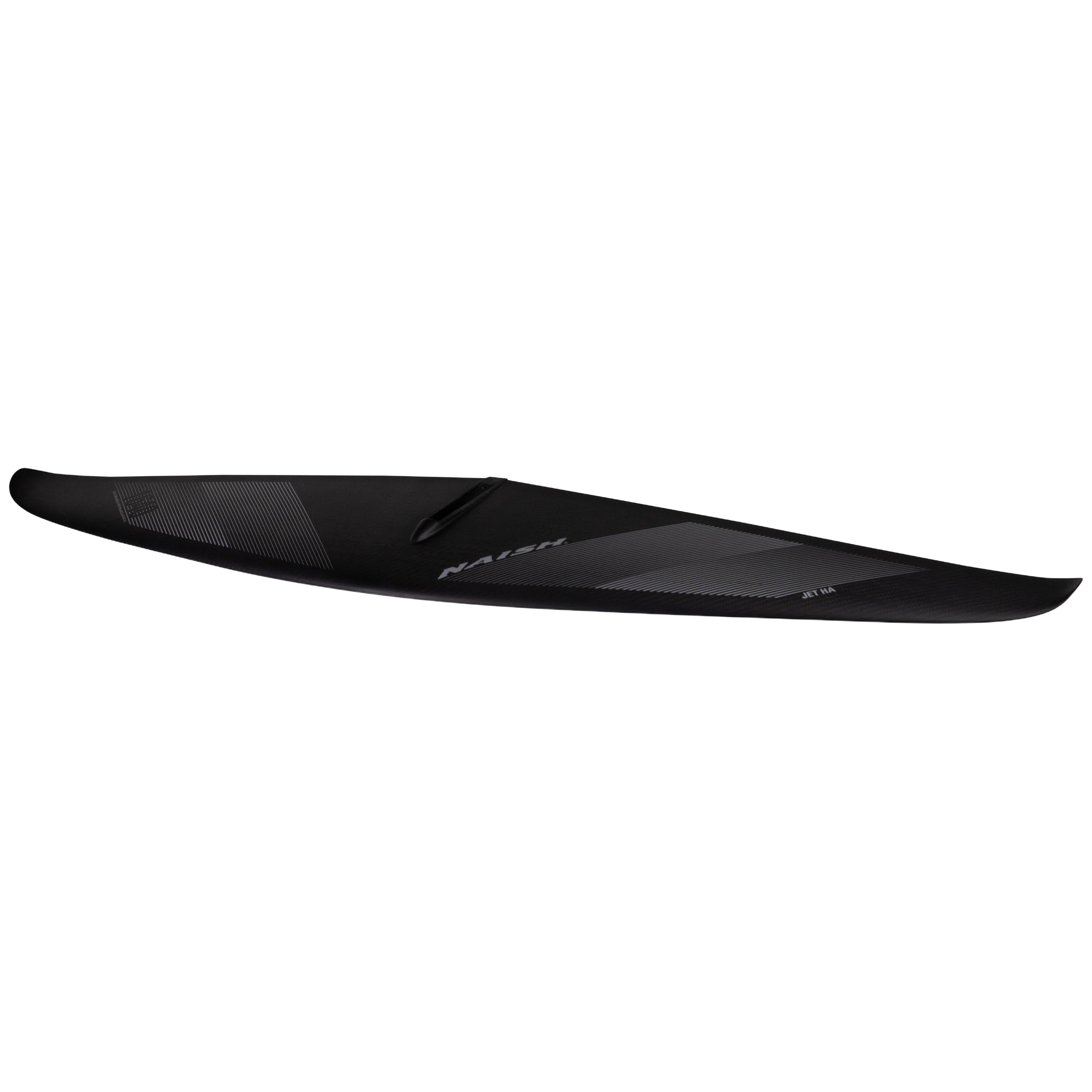

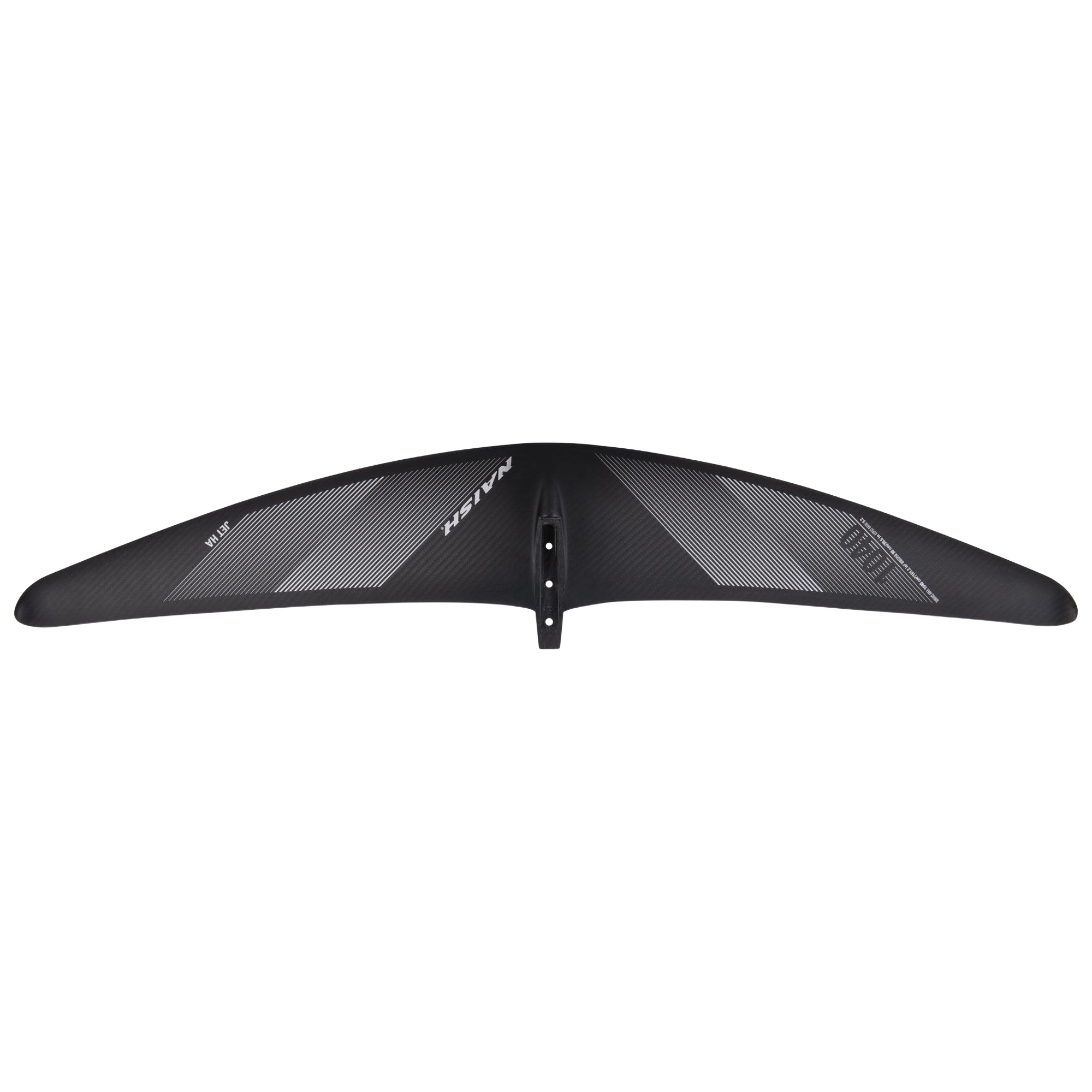

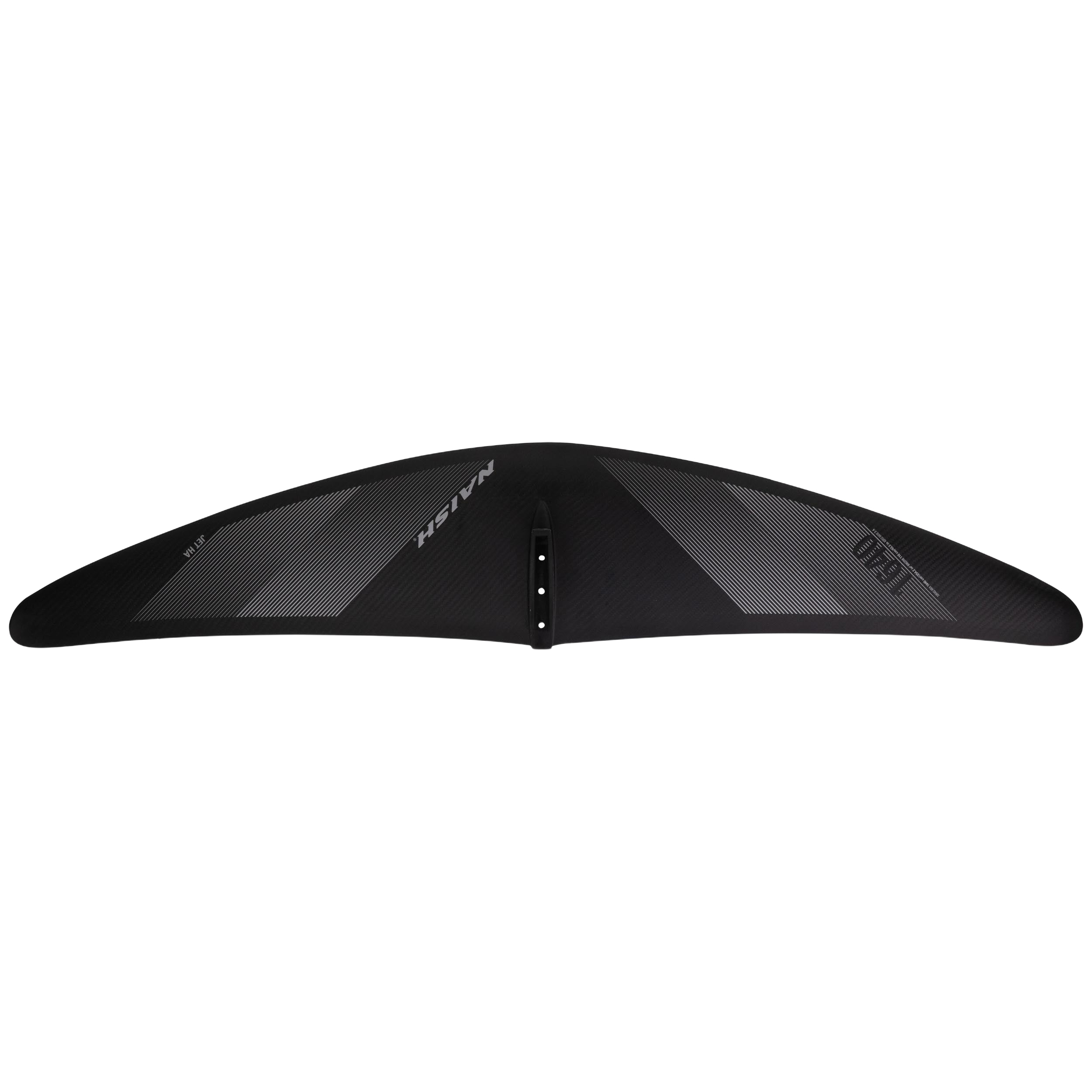

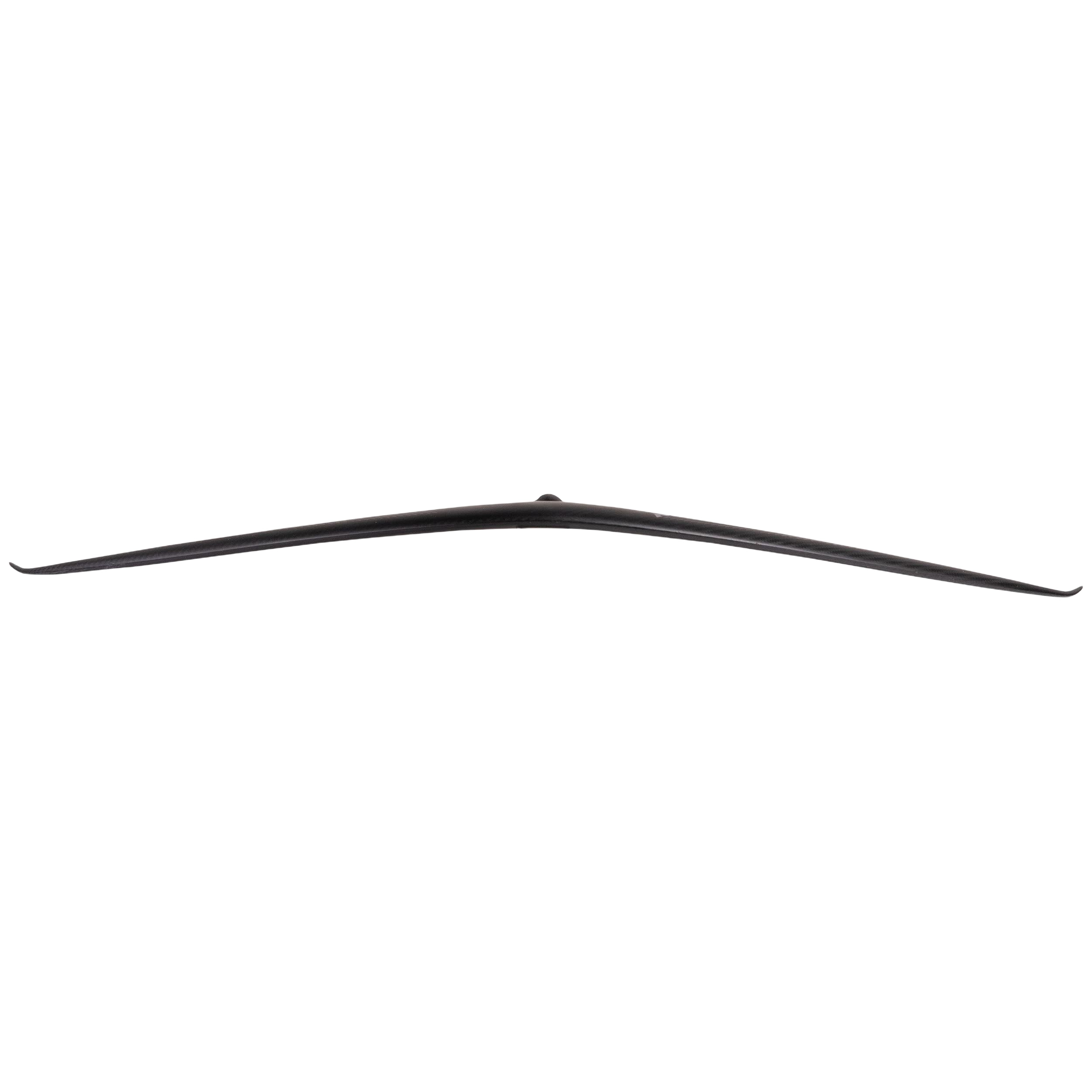

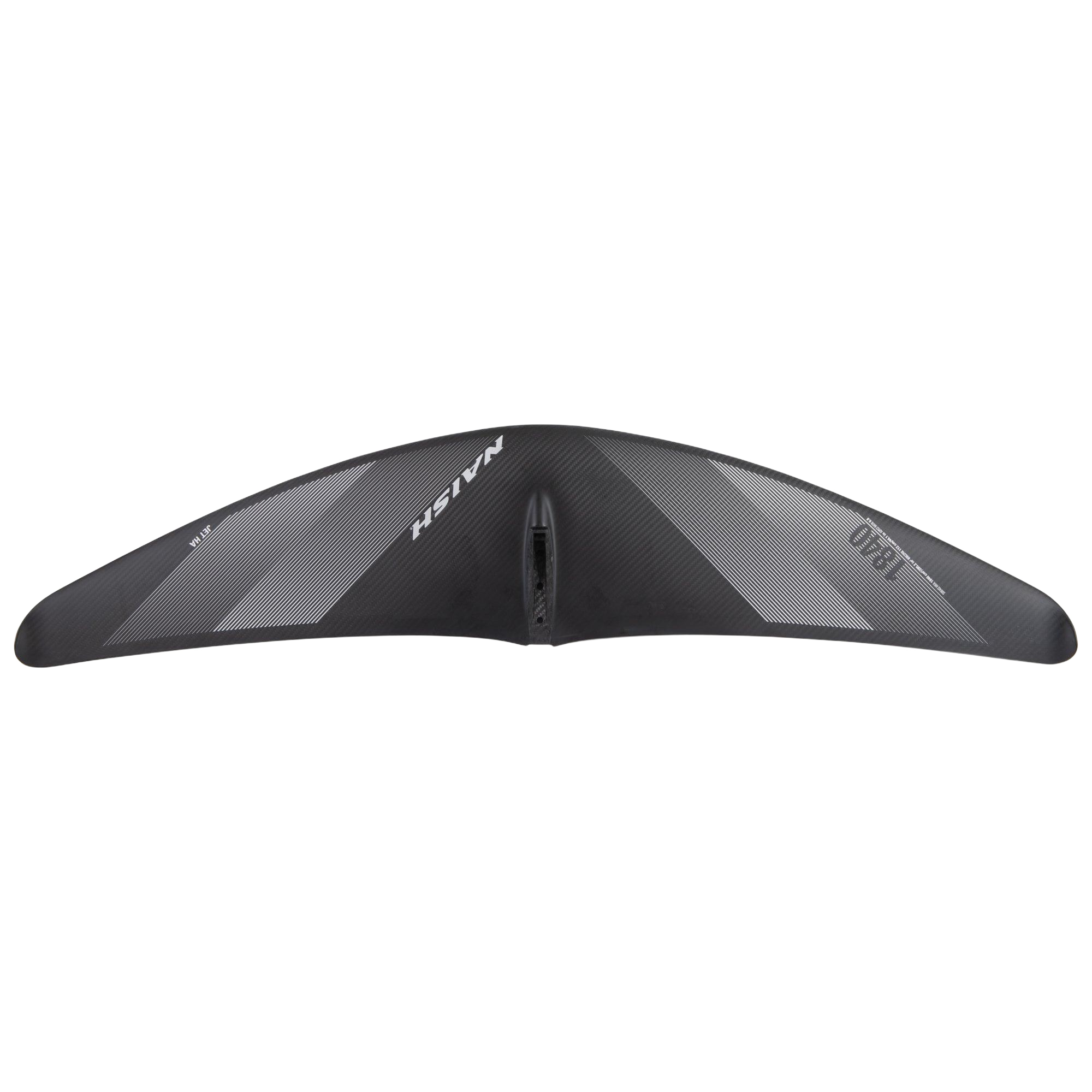

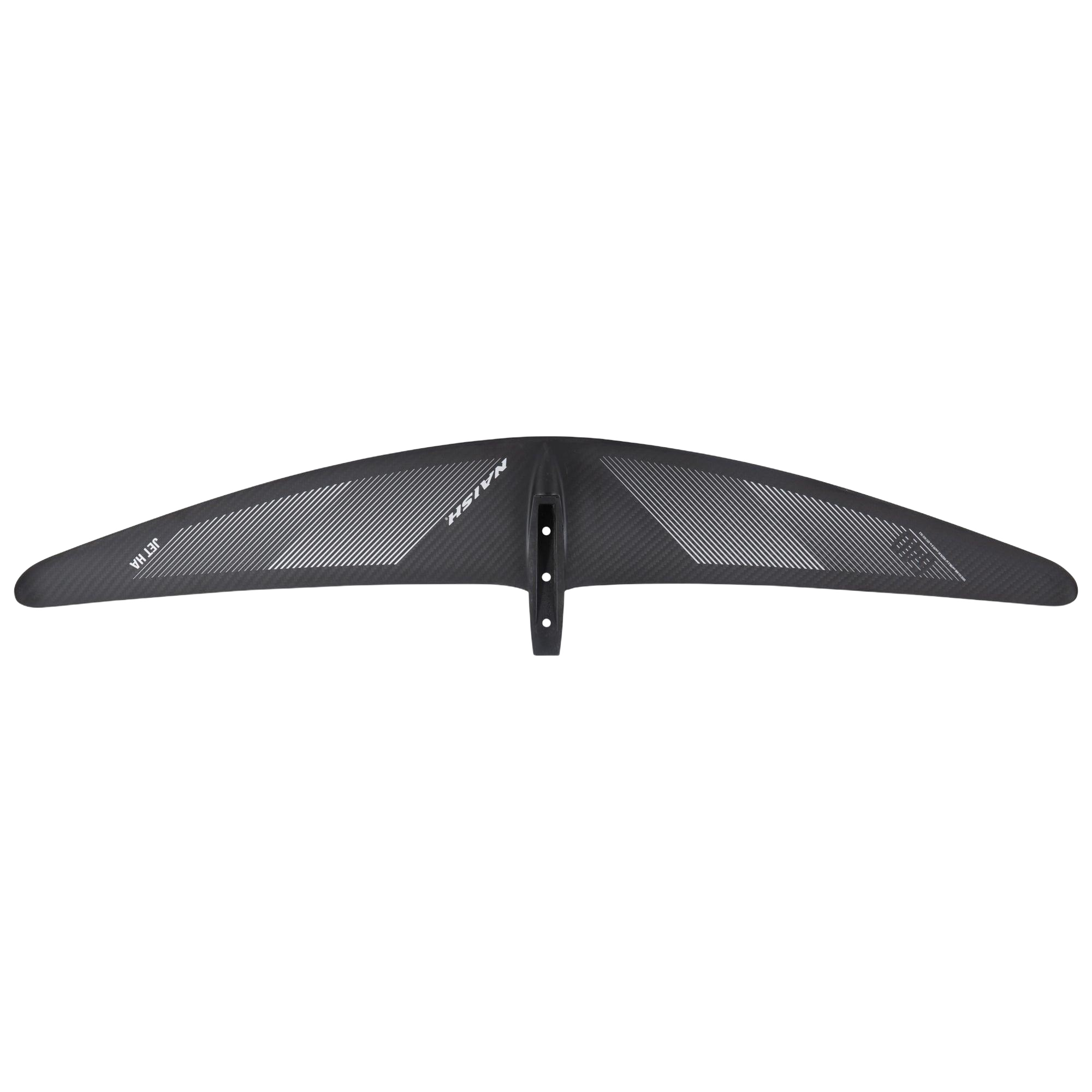

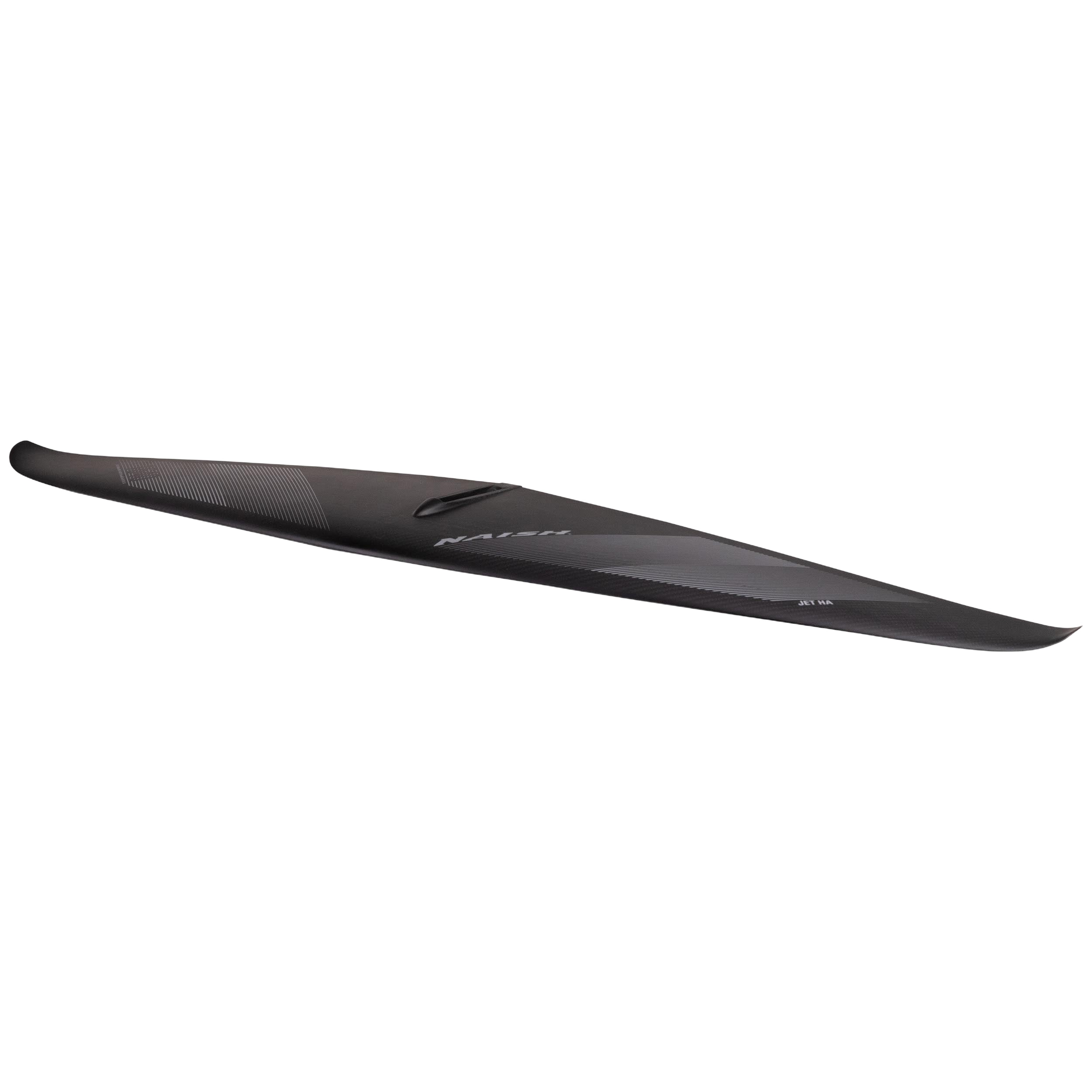

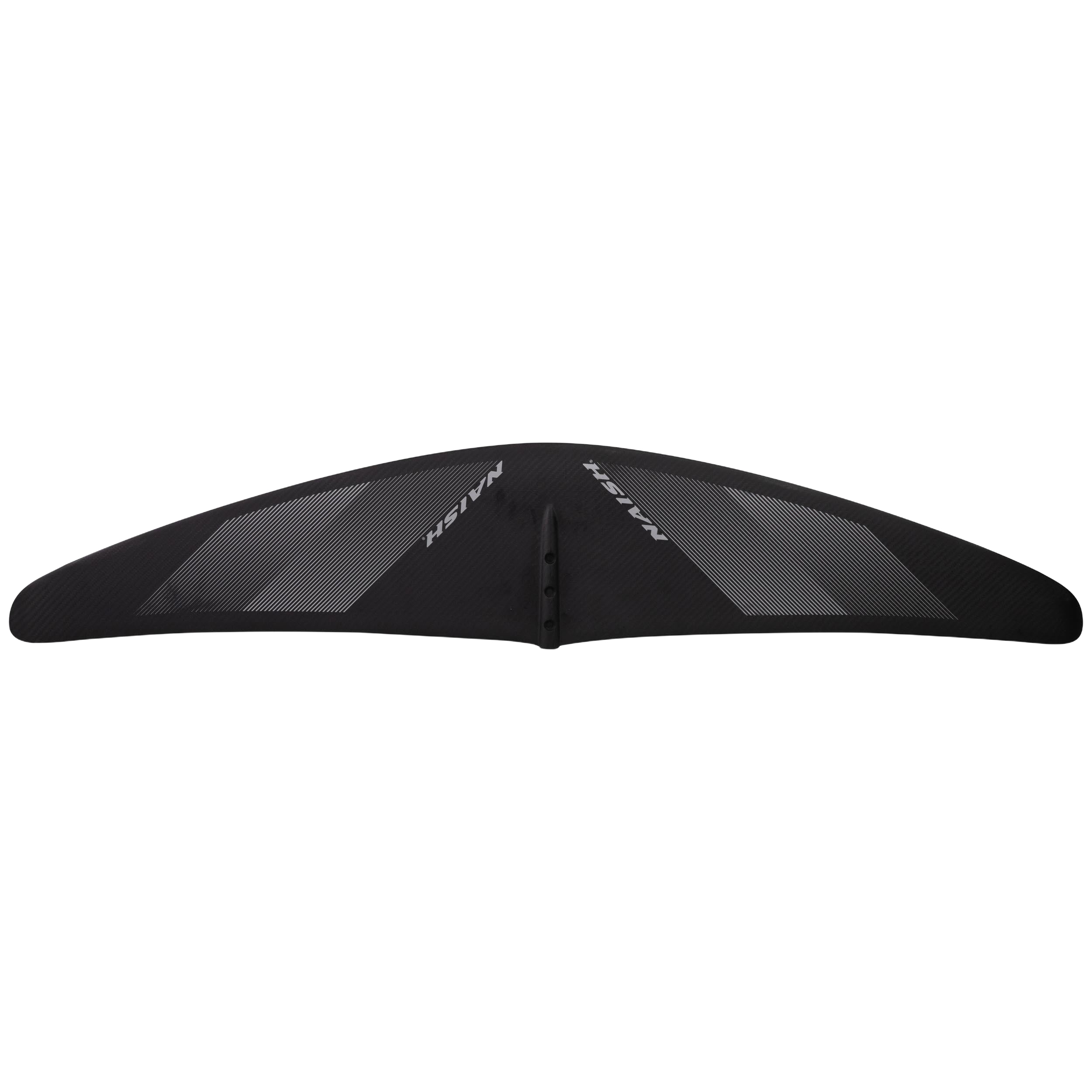

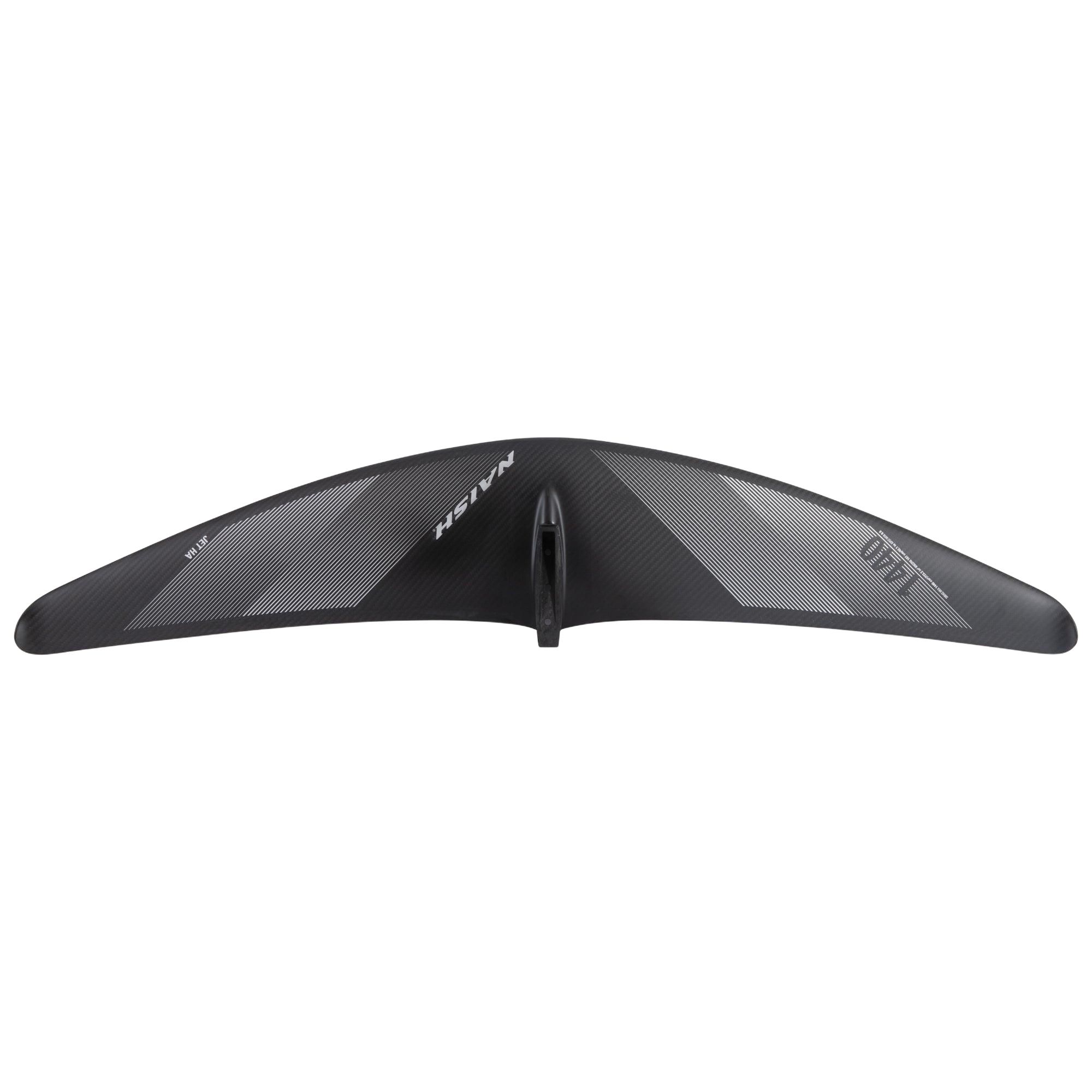

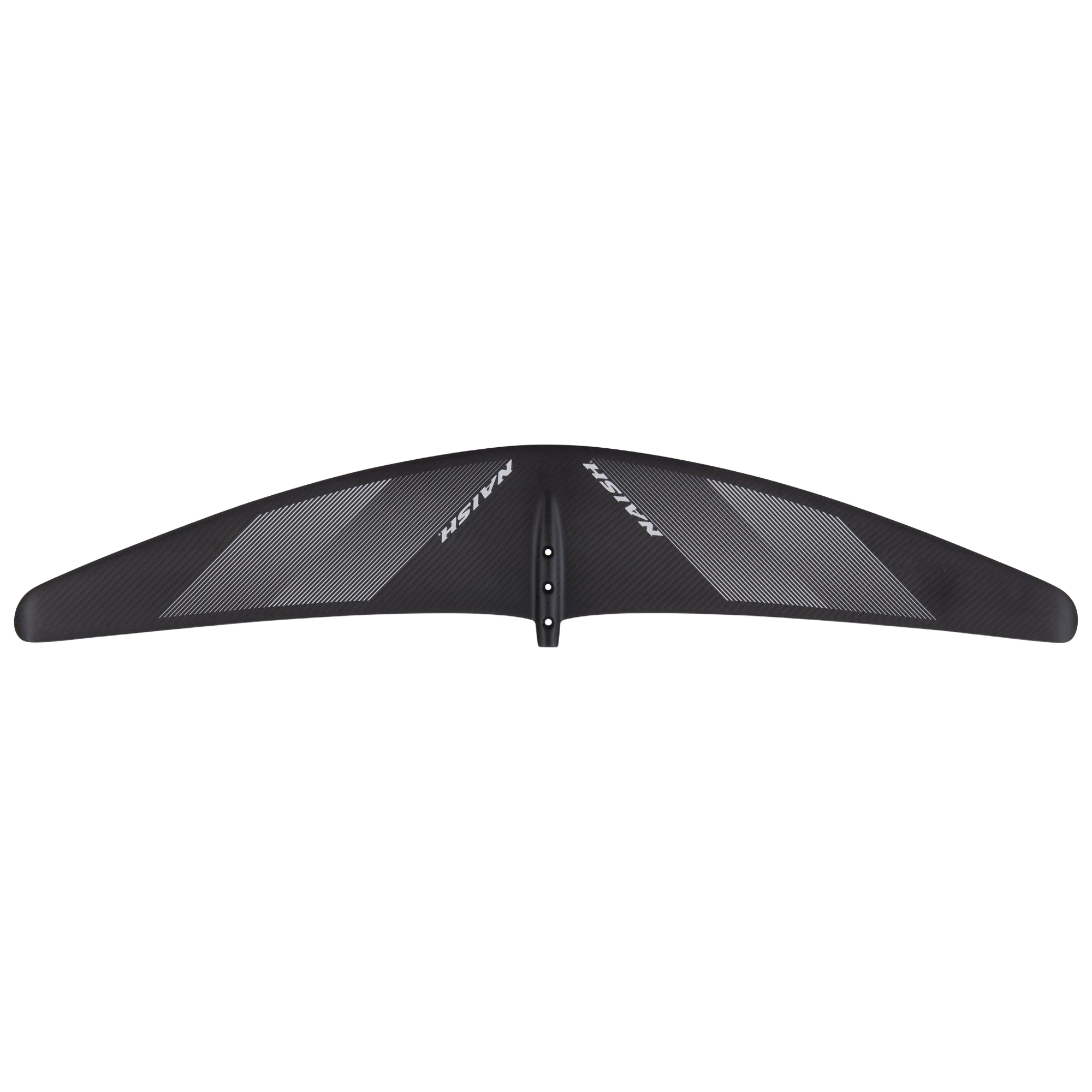

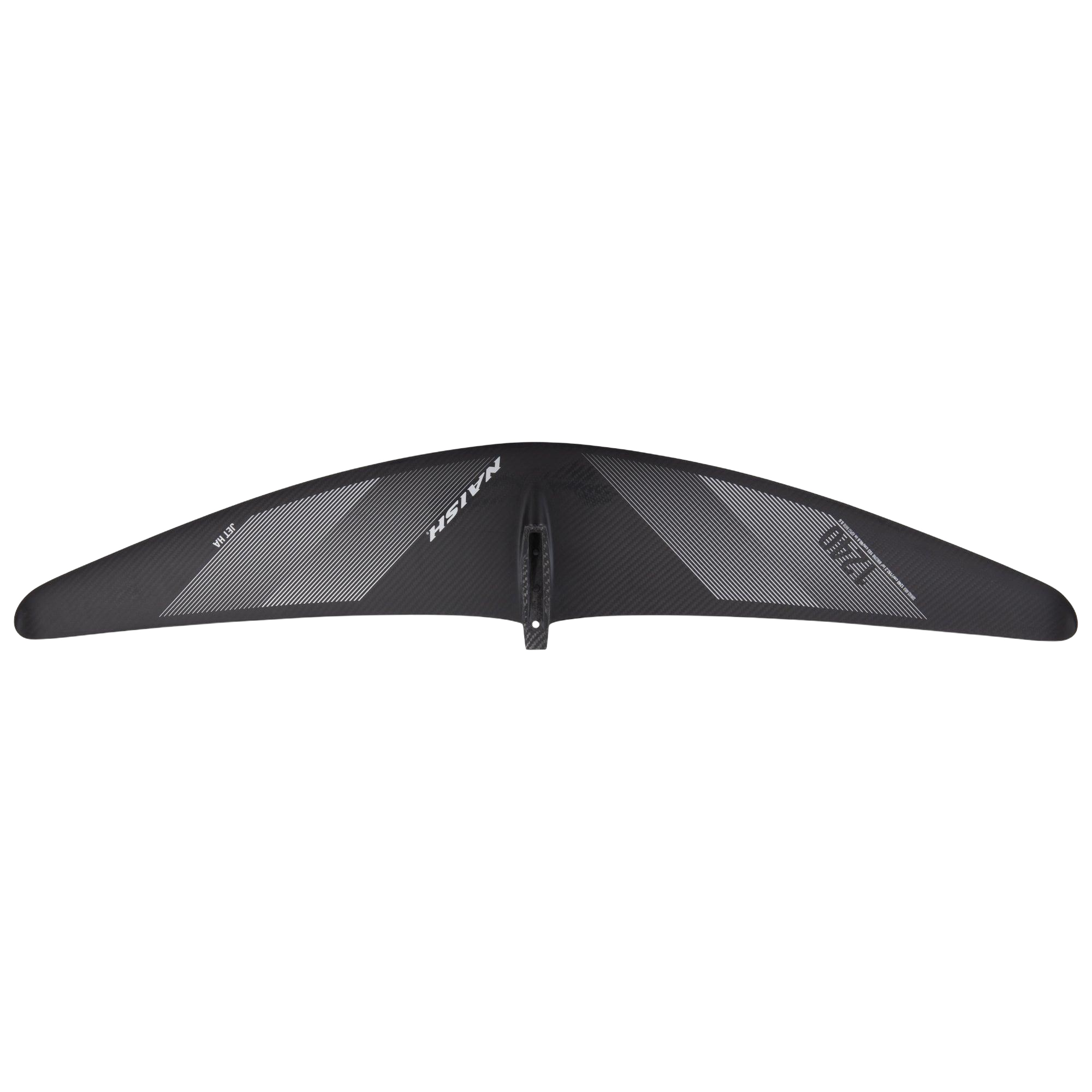

Jet HA Foil Front Wing
Jet HA Foil Front Wing
640
Javelin Logistics
5545 NE 148th Ave suite b
Portland OR 97230
United States
| Specifications of slected size | 640 |
|---|---|
| Lift | |
| Carve | |
| Speed | |
| Article code | 516.40210.000.640 |
| Aspect ratio | 10.2 |
| Experience level | Expert |
| Front wing span cm | 81.0 |
| Front wing span in | 31.9 |
| Front wing stab | Jet HA 640 |
| Kubus code | 516.40210.000 |
| Projected surface area cm2 | 640 |
| Projected surface area in2 | 99.2 |
| Rider weight | <55, 55-70, 70-85 |
| Use case | wing, prone, kite, windsurf, sup |
| Weight kg | 0.56 |
Choose options
| Specifications of slected size | 640 |
|---|---|
| Lift | |
| Carve | |
| Speed | |
| Article code | 516.40210.000.640 |
| Aspect ratio | 10.2 |
| Experience level | Expert |
| Front wing span cm | 81.0 |
| Front wing span in | 31.9 |
| Front wing stab | Jet HA 640 |
| Kubus code | 516.40210.000 |
| Projected surface area cm2 | 640 |
| Projected surface area in2 | 99.2 |
| Rider weight | <55, 55-70, 70-85 |
| Use case | wing, prone, kite, windsurf, sup |
| Weight kg | 0.56 |
| Specifications of slected size | 640 |
|---|---|
| Lift | |
| Carve | |
| Speed | |
| Article code | 516.40210.000.640 |
| Aspect ratio | 10.2 |
| Experience level | Expert |
| Front wing span cm | 81.0 |
| Front wing span in | 31.9 |
| Front wing stab | Jet HA 640 |
| Kubus code | 516.40210.000 |
| Projected surface area cm2 | 640 |
| Projected surface area in2 | 99.2 |
| Rider weight | <55, 55-70, 70-85 |
| Use case | wing, prone, kite, windsurf, sup |
| Weight kg | 0.56 |
MAX EFFICIENCY + PERFORMANCE
The newly developed Jet High Aspect foils have been engineered for maximum efficiency and performance. They feature an increased leading edge area allowing for narrower foil sections, resulting in improved glide and stability. The strategically designed wing tips offer exceptional speed, pumping efficiency, and turning ability.
The combination of these elements results in a maneuverability that has never been seen before with HA foils. The slight rake angle reduces drag while providing more control and improved lift during turns. This new design also allows the foil to breach the surface without interrupting laminar flow. The new features on the Jet HA provide an optimized experience that allows riders to foil with ease, making it ideal for all types of riders regardless of skill level. The Jet HA offers an optimal balance between stabilization and performance that ensures smooth handling on any type of wave or swell.
High Aspect
Maximum efficiency and performance.
Narrow foil section
Improved glide and stability.
Newly designed wing tips
Provide exceptional speed, pumping efficiency, and turning ability.
Slight rake angle
Reduces drag while providing more control and improved lift during turns.
100% Prepreg 3K Carbon Outer Layer Satin Finish
Durable and lightweight construction.
Dual Expansion Core Construction
Molded lightweight layup utilizing UD Carbon and Glass Laminate.
Scarf Joint Connection to Fuselage
Proven and compatible with earlier Naish fuselage models.
Specifications per Size
Select columns to hide or show:
| Size | Lift | Carve | Speed | Article code | Aspect ratio | Experience level | Front wing span cm | Front wing span in | Front wing stab | Kubus code | Projected surface area cm2 | Projected surface area in2 | Rider weight | Use case | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 640 | 516.40210.000.640 | 10.2 | Expert | 81.0 | 31.9 | Jet HA 640 | 516.40210.000 | 640 | 99.2 | <55, 55-70, 70-85 | wing, prone, kite, windsurf, sup | 0.56 | |||
| 840 | 516.40210.000.840 | 9.8 | Expert, Intermediate | 90.0 | 35.4 | Jet HA 840 | N/A | 840 | 130.2 | <55, 55-70, 70-85 | wing, prone, kite, windsurf, sup | 0.72 | |||
| 1040 | 516.40210.000.104 | 9.2 | Expert, Intermediate | 98.0 | 38.6 | Jet HA 1040 | N/A | 1040 | 161.2 | 55-70, 70-85, 85< | wing, prone, kite, windsurf, sup, sup downwind | 0.87 | |||
| 1240 | 516.40210.000.124 | 8.6 | Intermediate | 103.0 | 40.6 | Jet HA 1240 | N/A | 1240 | 192.2 | 55-70, 70-85, 85< | wing, prone, kite, windsurf, sup, sup downwind, pump foiling | 1.03 | |||
| 1440 | 516.40210.000.144 | 8.0 | Intermediate, Beginner | 107.0 | 42.1 | Jet HA 1440 | N/A | 1440 | 223.2 | 70-85, 85< | wing, prone, windsurf, sup, sup downwind, pump foiling | 1.38 | |||
| 1640 | 516.40210.000.164 | N/A | Intermediate, Beginner | 110.0 | 43.14 | Jet HA 1640 | N/A | 1640 | 254.2 | 70-85, 85< | wing, prone, windsurf, sup, sup downwind, pump foiling | N/A | |||
| 1840 | 516.40210.000.184 | 6.8 | Intermediate, Beginner | 112.0 | 44.1 | Jet HA 1840 | N/A | 1840 | 285.2 | 70-85, 85< | wing, prone, windsurf, sup, sup downwind, pump foiling | 1.61 |
"After trying a lot of foils on the market, I can confidently say nothing turns and breaches like our HA range. It's amazing to have a foil that not only pumps and glides like an HA foil, but can rip and never ventilate."- Ewan Jaspan
"A sweet high aspect foil for a range of disciplines, great glide and surprisingly easy to turn. The 640 is insane if you can ride it!"- Alexander Lewis Hughes
"My one foil quiver. I use it for absolutely everything. You name it, you can be sure I’m on the HA!"- Louka Pitot
"The 840 is great for downwinding, waves, and prone. It glides really well and lifts smooth, even at low speeds. I like that I can use it for lots of different things and it always works great."-Julian Salmonn
What our customers say
After trying a lot of foils on the market, I can confidently say nothing turns and breaches like our HA range. It's amazing to have a foil that not only pumps and glides like an HA foil, but can rip and never ventilate.
A sweet high aspect foil for a range of disciplines, great glide and surprisingly easy to turn. The 640 is insane if you can ride it!
The 840 is great for downwinding, waves, and prone. It glides really well and lifts smooth, even at low speeds. I like that I can use it for lots of different things and it always works great.
