Naish
Glider HA
Glider HA
1800
UCanTrade Auburn
2302 West Valley Highway
Suite B-300
Auburn WA 98001
United States
Size: 1800
Aspected ratio: 9.4
Carve: 1
Experience_level: BeginnerIntermediate
Front wing span cm: 130.0
Front wing span in: 51.2
Front wing stab: Glider HA 1800
Fuselage length cm: 64
Fuselage length in: 25.2
Hardware: tbd/ 4 x 30mm M6/ 4 x T-nuts
Lift: 5
Projected surface area cm2: 1800
Projected surface area in2: 279.0
Rider_weight: 70-8585<
Speed: 1
Stabilizer: 2D stab 250
Use_case: SUP DownwindPump Foiling
Weight kg: 2.59
Weight us: 4.4
Choose options
Size: 1800
Aspected ratio: 9.4
Carve: 1
Experience_level: BeginnerIntermediate
Front wing span cm: 130.0
Front wing span in: 51.2
Front wing stab: Glider HA 1800
Fuselage length cm: 64
Fuselage length in: 25.2
Hardware: tbd/ 4 x 30mm M6/ 4 x T-nuts
Lift: 5
Projected surface area cm2: 1800
Projected surface area in2: 279.0
Rider_weight: 70-8585<
Speed: 1
Stabilizer: 2D stab 250
Use_case: SUP DownwindPump Foiling
Weight kg: 2.59
Weight us: 4.4
Size: 1800
Aspected ratio: 9.4
Carve: 1
Experience_level: BeginnerIntermediate
Front wing span cm: 130.0
Front wing span in: 51.2
Front wing stab: Glider HA 1800
Fuselage length cm: 64
Fuselage length in: 25.2
Hardware: tbd/ 4 x 30mm M6/ 4 x T-nuts
Lift: 5
Projected surface area cm2: 1800
Projected surface area in2: 279.0
Rider_weight: 70-8585<
Speed: 1
Stabilizer: 2D stab 250
Use_case: SUP DownwindPump Foiling
Weight kg: 2.59
Weight us: 4.4

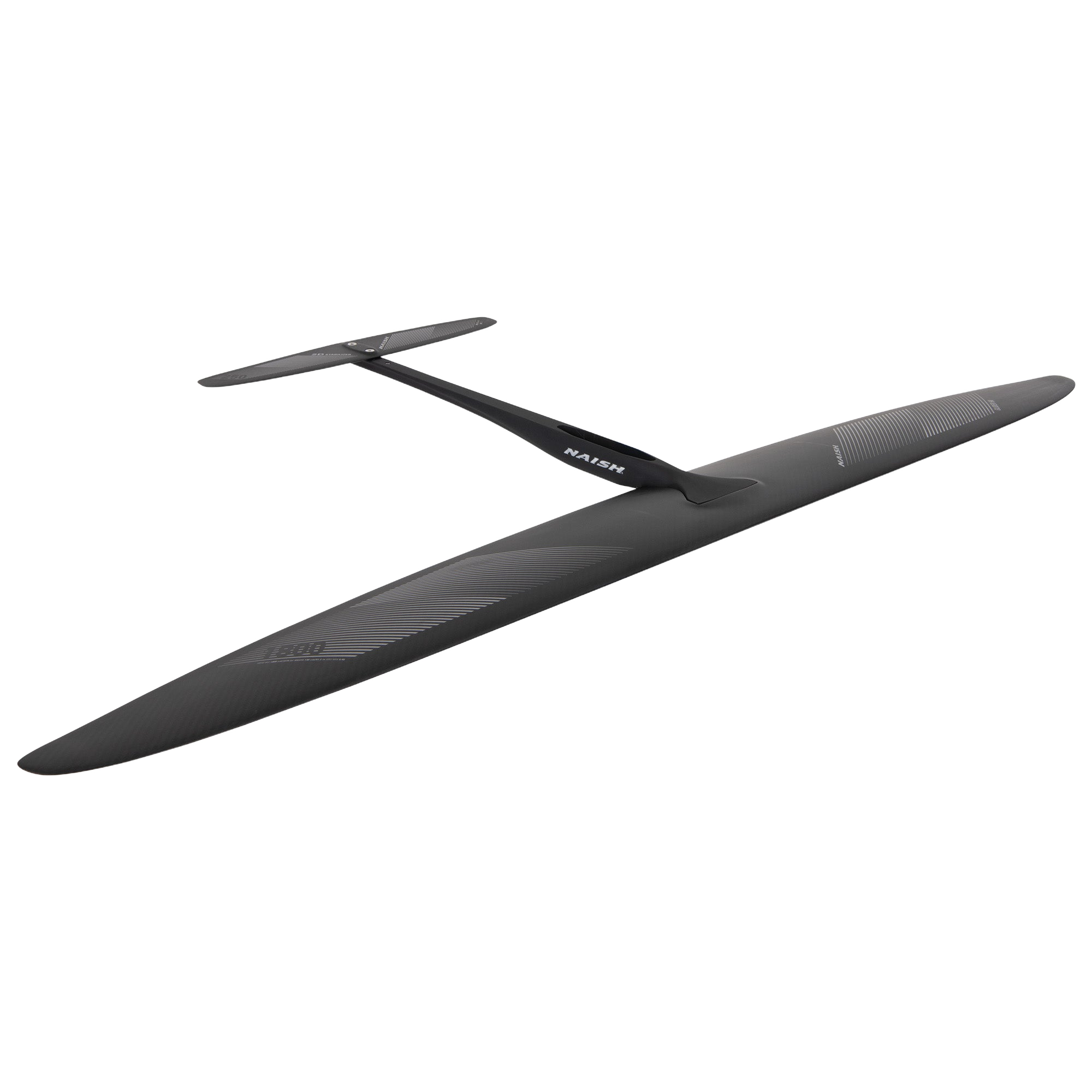

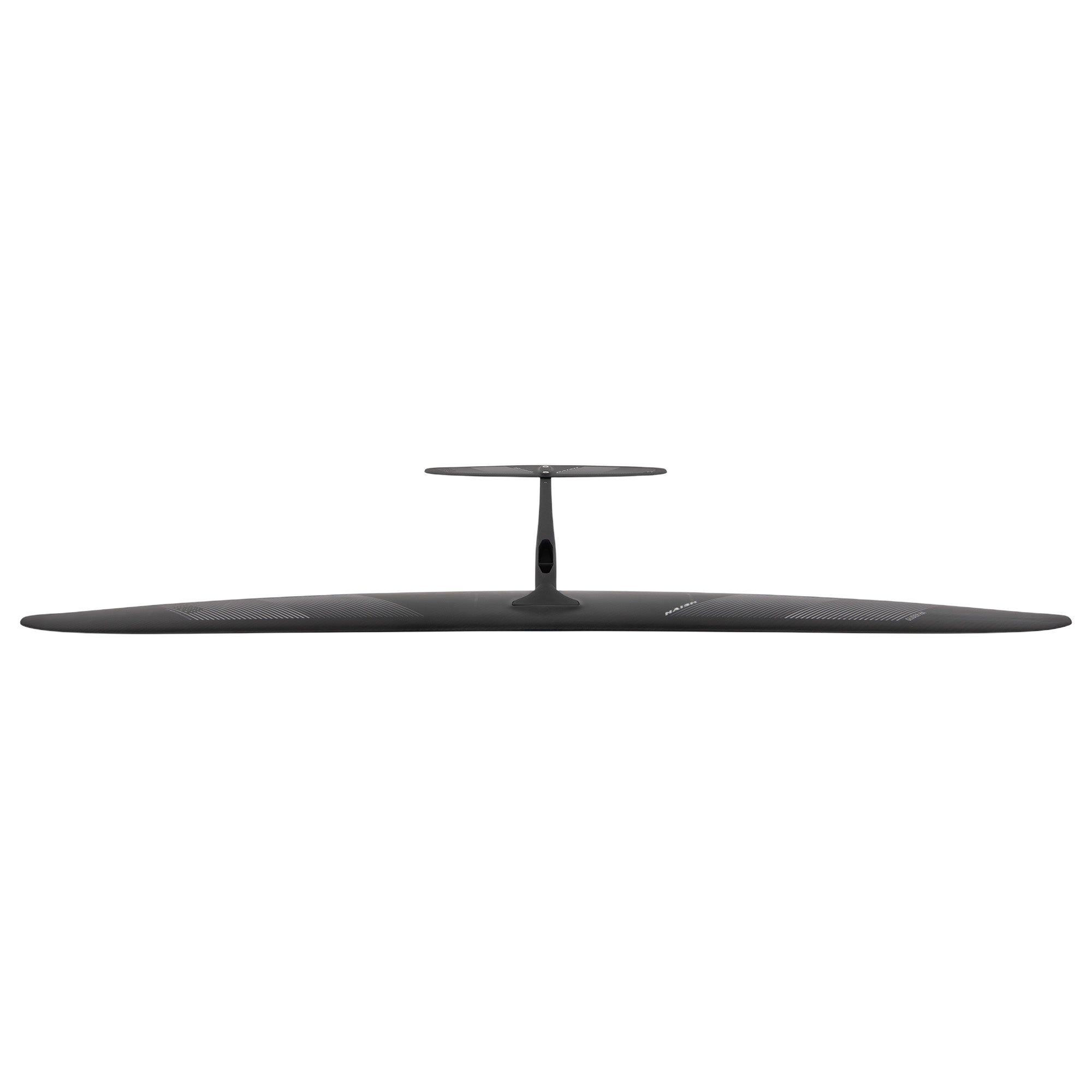

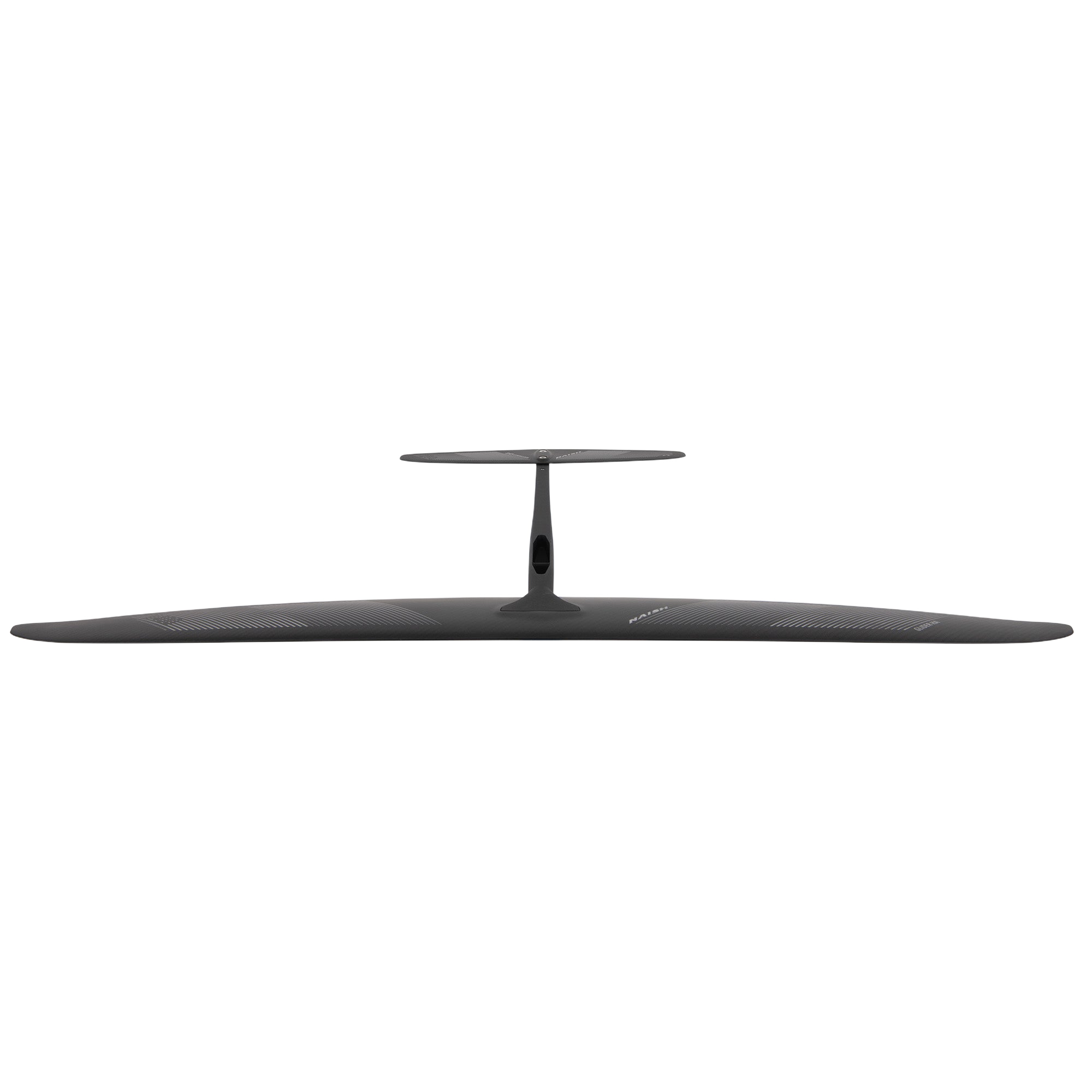

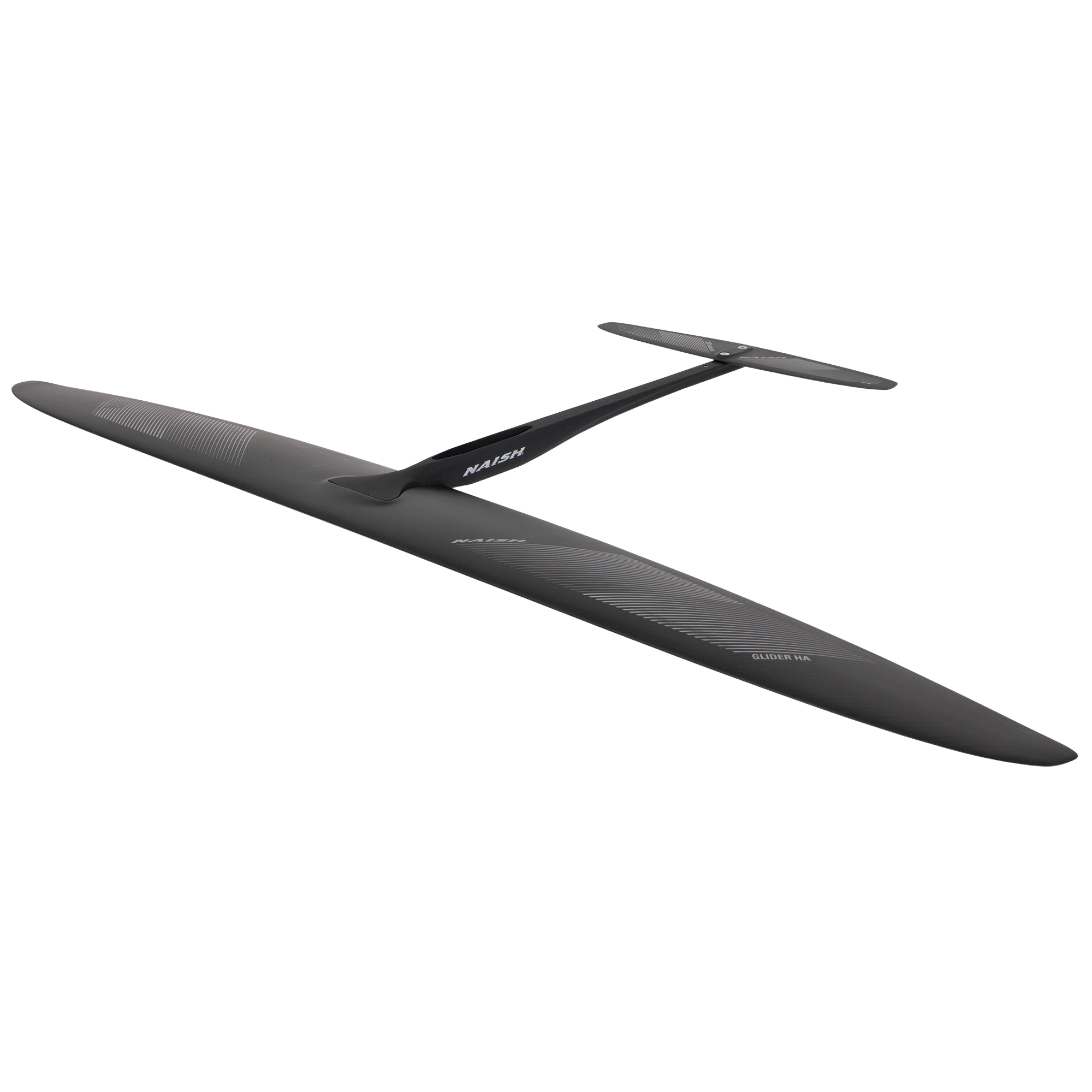

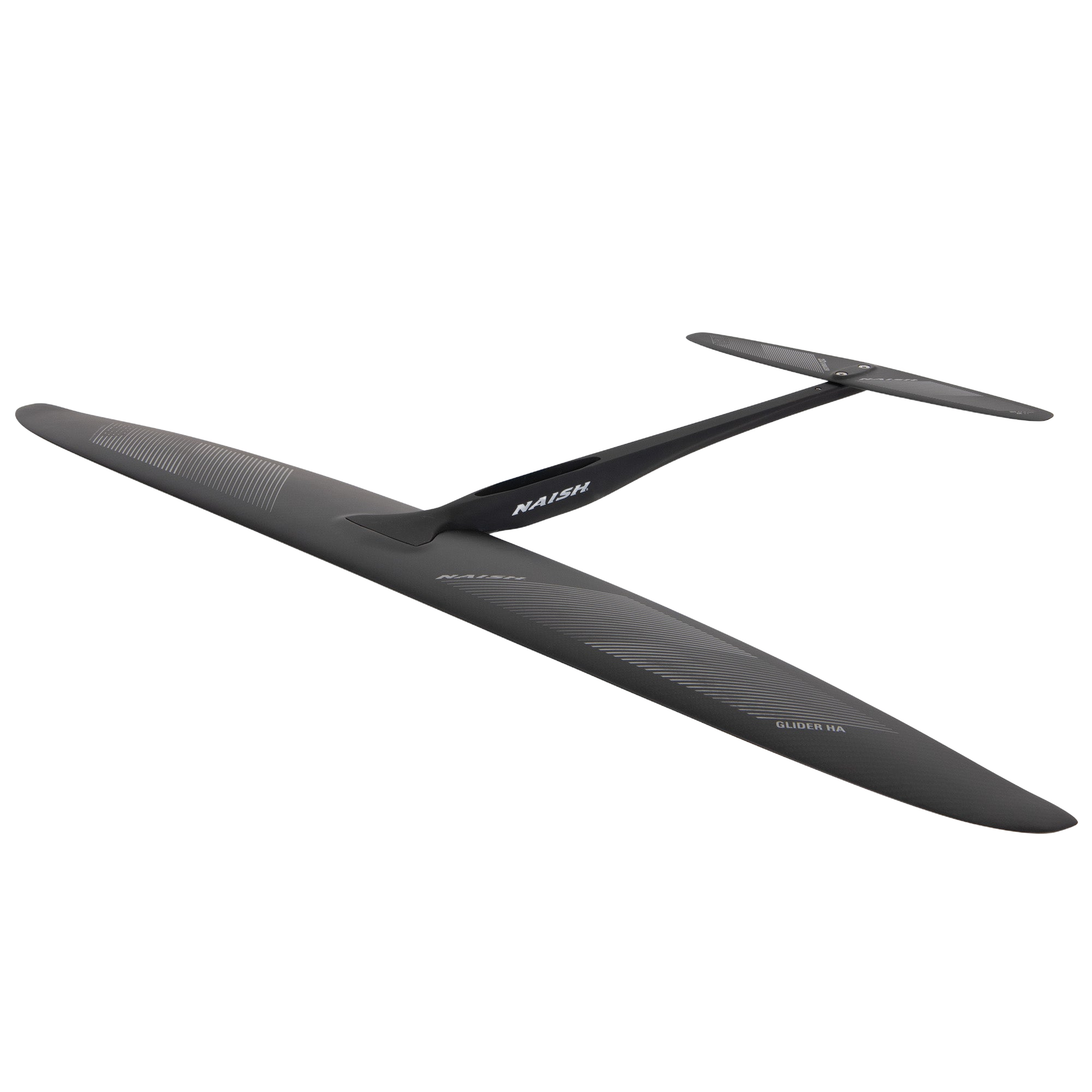

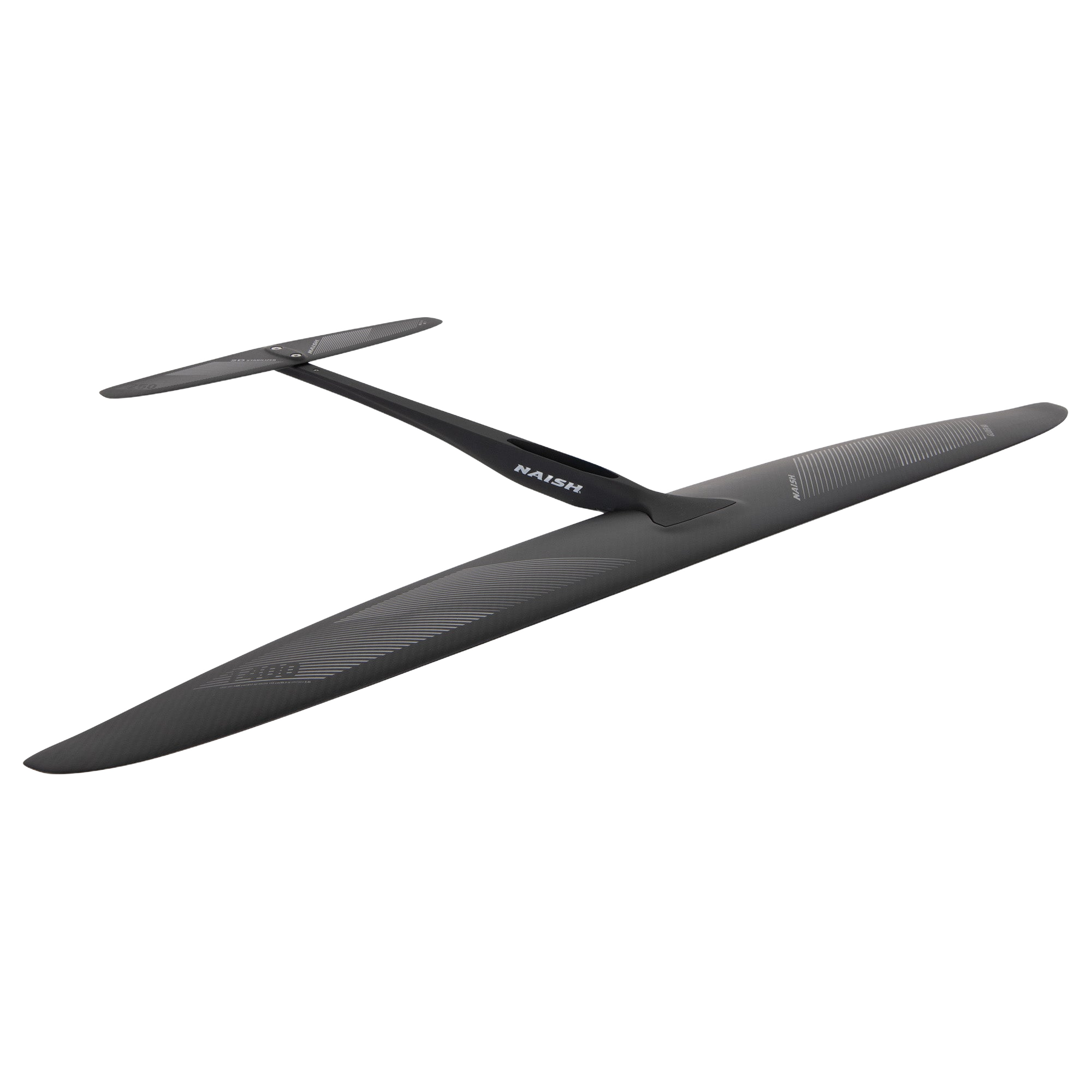

Glider HA
The Glider HA is our newly designed pump foil that specializes in dock starts and low-effort, light wind downwinding. The large wingspan and high aspect ratio foils provide high lift and low stall speed, making it possible to effortlessly pump and glide for long distances. In order to accommodate this larger wingspan, a new "Hammer Head" fuselage front wing connection has been designed to provide a very stable connection, instant response, and reduces any flex. The Dual expansion foam core construction with UD and 3K carbon layup provides ultimate stiffness at low weight. Note: The Glider HA Front Wing is only compatible with the Glider HA Fuselage.
Large Wingspan Foil
Provides high lift at low speeds and maximized glide.
Hammer Head Joint Connection to Fuselage
Creates an ultra-stiff connection between the fuselage and the front wing, providing more lateral support that is needed to accommodate the wide wingspan.
100% Prepreg 3K Carbon Outer Layer Satin Finish
Durable and lightweight construction.
Dual Expansion Core Construction
Molded lightweight layup utilizing UD and 3K carbon Laminate.
Specifications per Size
Select columns to hide or show:
Size | Lift | Carve | Speed | Aspected ratio | Experience level | Front wing span cm | Front wing span in | Front wing stab | Fuselage length cm | Fuselage length in | Hardware | Projected surface area cm2 | Projected surface area in2 | Rider weight | Stabilizer | Use case | Weight kg | Weight us |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1400 | 9.45 | Intermediate, Expert | 115.0 | 45.3 | Glider HA 1400 | 64 | 25.2 | tbd/ 4 x 30mm M6/ 4 x T-nuts | 1400 | 217.0 | 55-70, 70-85, 85< | 2D stab 250 | SUP Downwind, Pump Foiling | 2.14 | 5.0 | |||
1800 | 9.4 | Beginner, Intermediate | 130.0 | 51.2 | Glider HA 1800 | 64 | 25.2 | tbd/ 4 x 30mm M6/ 4 x T-nuts | 1800 | 279.0 | 70-85, 85< | 2D stab 250 | SUP Downwind, Pump Foiling | 2.59 | 4.4 |
